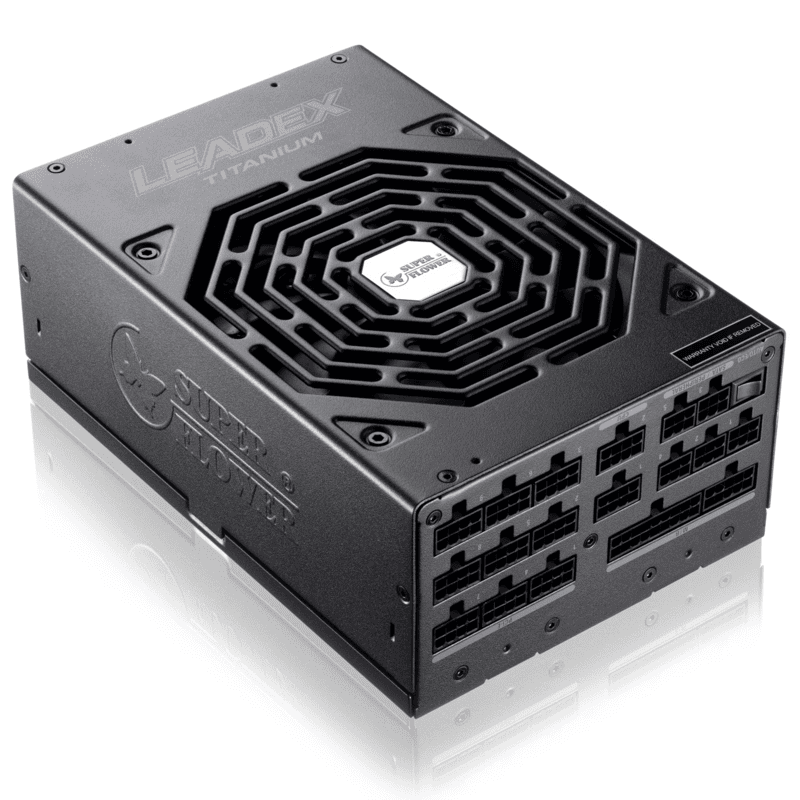

Super Flower Leadex Titanium 1600W 80 Plus Titanium Fully Modular ATX Power Supply - SF-1600F14HT
Brand: SUPER
Model: SF-1600F14HT
Power: Full-range auto voltage detection (115V~240V, Active PFC) ensures stable power delivery.
Usage: Perfect for high-performance gaming and personal desktop systems.
Compatibility: Supports all Intel/AMD multi-core CPUs, ATX/BTX compatible motherboards.

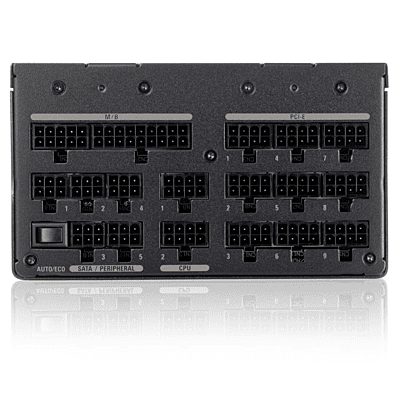

Full Modular Design: 100% modular cabling for easy cable management and improved airflow.
Product Overview
The Super Flower Leadex Titanium 1600W is a fully modular ATX 3.1 power supply certified to 80 Plus Titanium, the highest efficiency tier, and is also Cybenetics Titanium rated. It complies with ATX 12V v3.1 and PCIe 5.1, shipping with a native 12V-2x6 (2x8 pin to 16 pin) cable rated for 600W to power the latest graphics cards. A 140mm dual ball bearing fan with an ECO fanless mode handles cooling.
Key Specifications
- Continuous output: 1600W
- Efficiency: 80 Plus Titanium (Cybenetics Titanium)
- Modularity: fully modular
- Form factor: ATX
- Standards: ATX 3.1, ATX 12V v3.1 and PCIe 5.1
- 12V-2x6 connectors: 1 (600W native cable)
- PCIe 6+2 pin connectors: 9
- EPS 12V (CPU): 2 (4+4 pin)
- SATA connectors: 12
- 4 pin peripheral (Molex): 5
- Cooling: 140mm dual ball bearing fan with ECO fanless mode
- Protections: OVP, UVP, OPP, OCP, OTP and SCP
- Dimensions: about 200mm depth (150 x 86 x 200 mm)
- Warranty: 10 years
Ideal For
- Flagship single or multi GPU gaming builds with RTX 40 and 50 series cards
- Workstations wanting the highest efficiency tier
- ATX 3.1 systems needing native 12V-2x6 power
General
- Wattage1600 Watt
- ModularFully Modular
- PCIe Connector (6+2)9
- SATA Connector12
- Peripheral (4-Pin)5
- 80 Plus Rating80 Plus Titanium
- Form FactorATX
