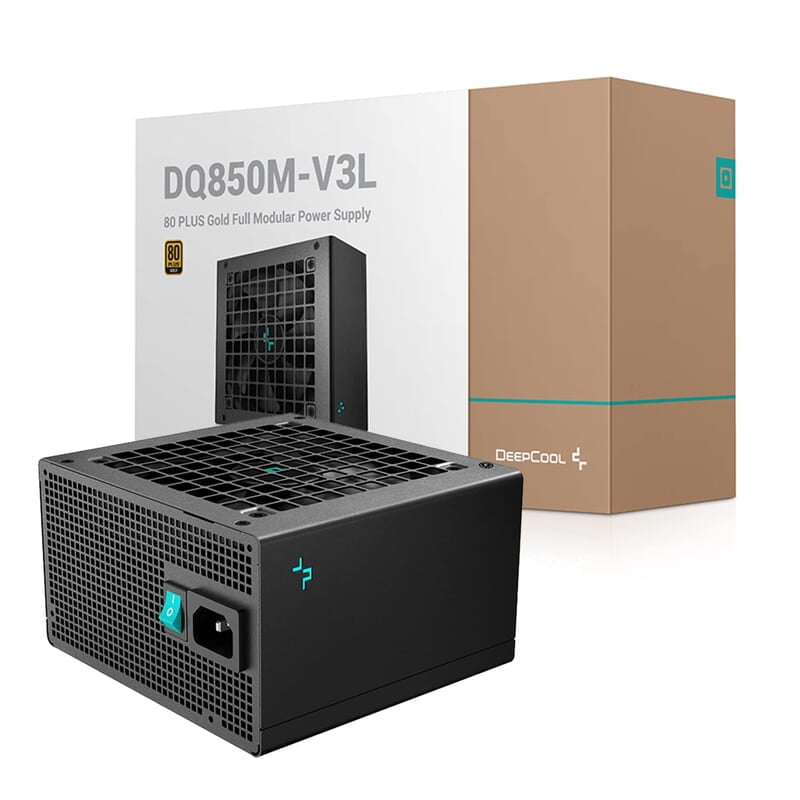

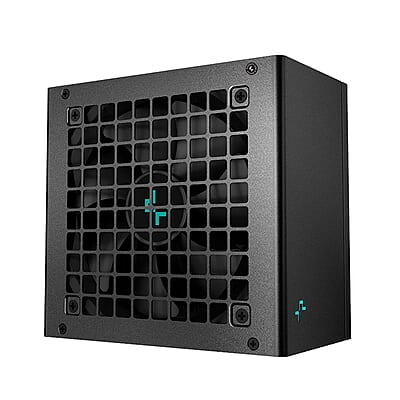

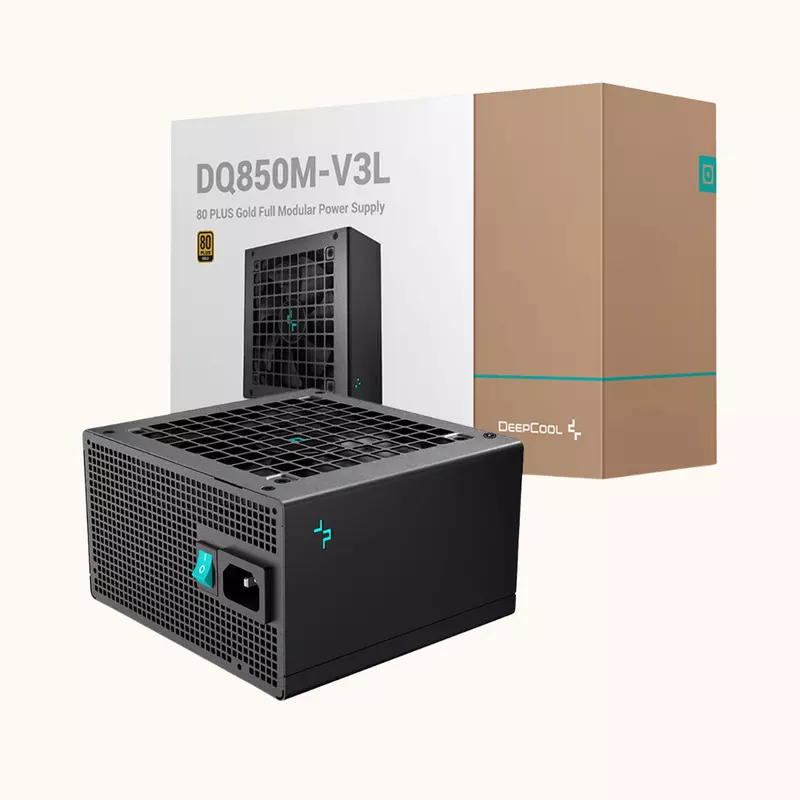

Deepcool DQ850M-V3L 850W 80 Plus Gold Fully Modular ATX Power Supply - R-DQ850M-FB0B

Product Overview

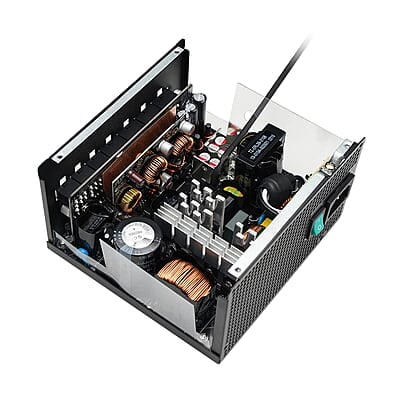

The Deepcool DQ850M-V3L is a fully modular 850W ATX power supply with 80 Plus Gold efficiency. It uses an active PFC plus full bridge LLC and DC to DC architecture with Japanese capacitors, a 120mm FDB fan with a silent fanless mode and a compact 140mm depth.

Key Specifications

• Continuous power: 850W
• Efficiency: 80 Plus Gold (over 92% at 50% load)
• Cabling: fully modular
• Form factor: ATX, ATX12V 2.4 (no 12VHPWR)

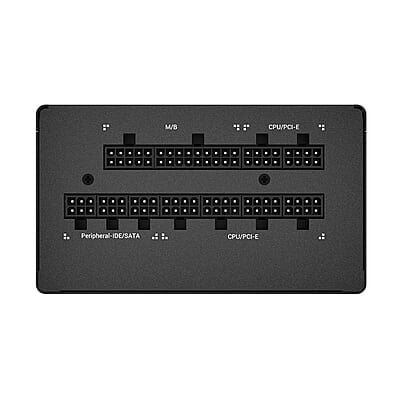

• Connectors: 1 x 24 pin ATX, 1 x 8 pin and 1 x 8 (4+4) pin CPU, 3 x PCIe 6+2, 4 x SATA, 4 x Molex

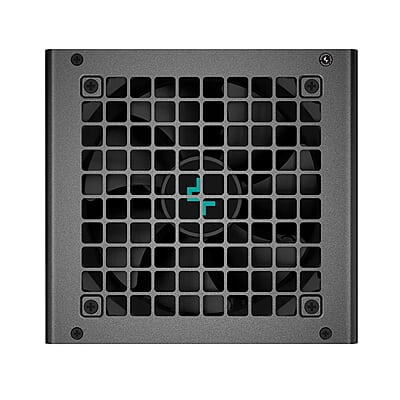

• Cooling: 120mm FDB fan with silent fanless mode
• Dimensions: 150 x 140 x 86 mm
• Protections: OVP, UVP, OCP, SCP, OPP, OTP

Ideal For

• Compact high performance gaming builds
• Systems wanting efficient fully modular power in a short PSU
