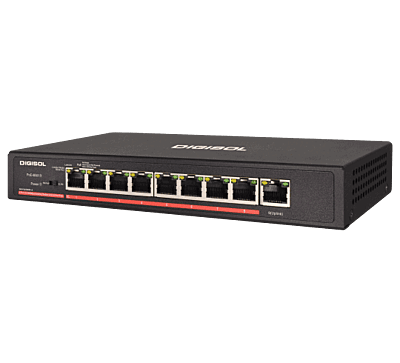

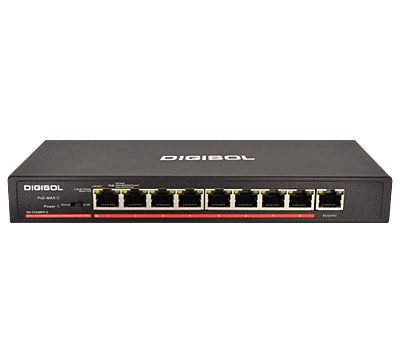

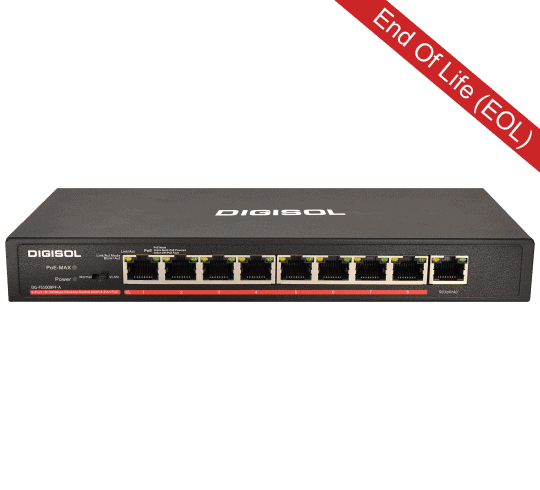

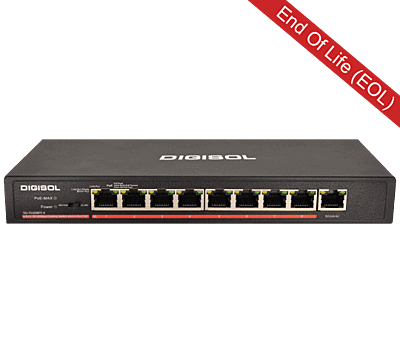

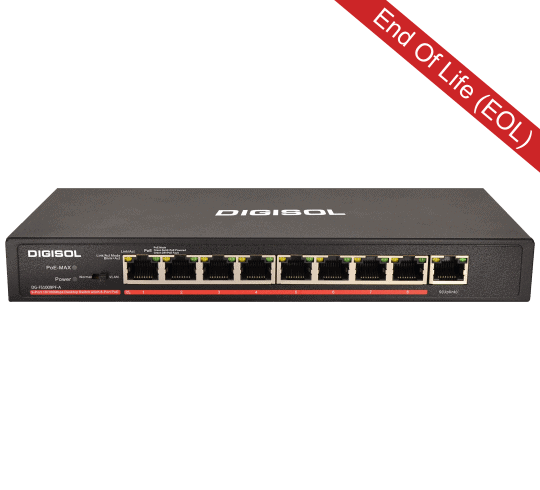

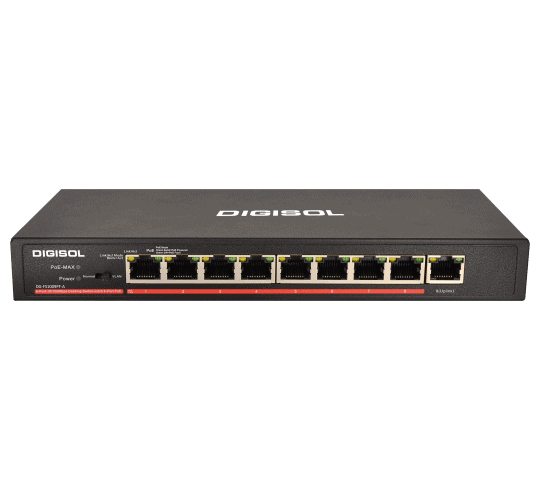

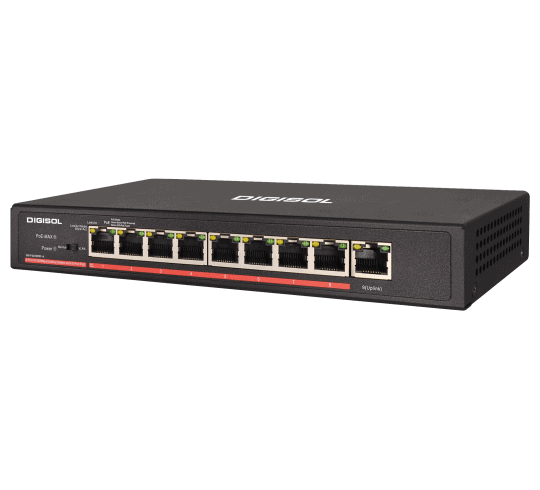

Digisol Fast Ethernet Unmanaged Desktop Switch with 8 PoE Ports and 1 Uplink Port, DG-FS1009PF-A (H/W Ver. A1)

Network Ports

PoE Ports

8 x 10/100 Mbps auto-sensing UTP RJ-45 ports with PoE

Uplink Port

1 x 10/100 Mbps auto-sensing UTP RJ-45 Uplink Port

Standard Compliance

Ethernet

IEEE 802.3 10BASE-T Ethernet

Fast Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

Flow Control

IEEE 802.3x Full Duplex Flow Control

Power over Ethernet

IEEE 802.3af/ IEEE 802.3at

Protocol

CSMA/CD

Network Cables

10BASE-T

UTP Cat. 3, 5 (100 m)

100BASE-TX

UTP Cat. 5, 5e (100 m)

Data Transfer Rates

Ethernet

10 Mbps (Half-duplex), 20 Mbps (Full Duplex)

Fast Ethernet

100 Mbps (Half-duplex), 200 Mbps (Full Duplex)

Performance Specifications

Forwarding mode

Store-and-forward

MAC Address database

4K

Max. PoE budget

120W

Status LEDs

Power, PoE in Use for each port, Link & activity indicators for each port, PoE-Max for max. PoE consumption

Environmental Specifications

Operating temperature

0°C ~ 40°C

Storage temperature

-20°C ~ 60°C

Operating humidity

10 %~90 % RH (non-condensing)

Storage humidity

5 to 90 % RH (non-condensing)

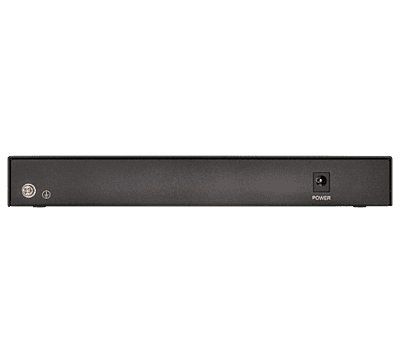

Power Adapter

48V DC, 2.5A

Physical Specifications

Dimensions (l x w x h)

220 x 93 x 28 mm

Minimum System Requirements

Network card for each PC or Server, Network cables Min. Cat.5 for 100 Mbps

Warranty

DIGICARE Limited Lifetime Warranty
