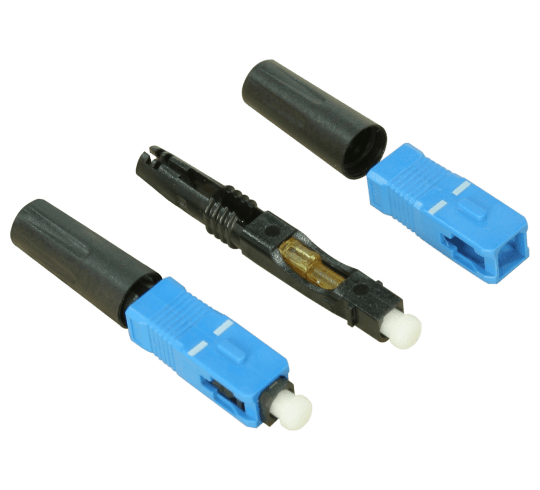

Digisol Channel SCS Fiber Optic Field Assembly Connectors SC, PC Type
Key Features
Push on and Pull off mating mechanism
Ease in assembly and installation at fields
Low insertion loss and Return loss
Better reliability and durability
Available in Single mode and Multimode versions
Suitable for 2.0mm and 0.9mm diameter patch cables.
Specifications
Category | Item | Description |
|---|---|---|
Specifications | Insertion Loss | ≤ 0.3 dB (SM) |
Return Loss | ≥50 dB (SM) (UPC), ≥ 60 dB (SM) (APC) | |
Compatible Optical Fibre | 9/125µm | |
Ferrule Withdrawal Force | 2.0N to 5.9N | |
Connector Cable Retention | 50 N (11.24 lbs) (for 2.0mm cable) | |
Durability (1000 Matings) | ≤ 0.2 dB | |
Main Body Material | Plastic (Polybutylene terephthalate) (SC Type) | |
Ferrule Material | Zirconia sleeve (SM) | |
Connector Details | Connector Types | PC/UPC (SM) or APC (SM) |
Connector Colours | PC/UPC Type (Blue, SM) | |
Environmental Specifications | Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C | |
Operating Temperature | -20°C to +70°C | |
Applications |
| Telecommunications networks |
| Computer networks | |
| Data communications | |
| Optical equipments | |
| CATV networks | |
| FTTH | |
Standards |
| Comply as per ANSI/TIA 568-C.3 |
