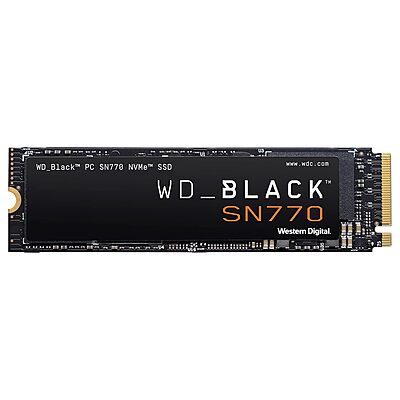

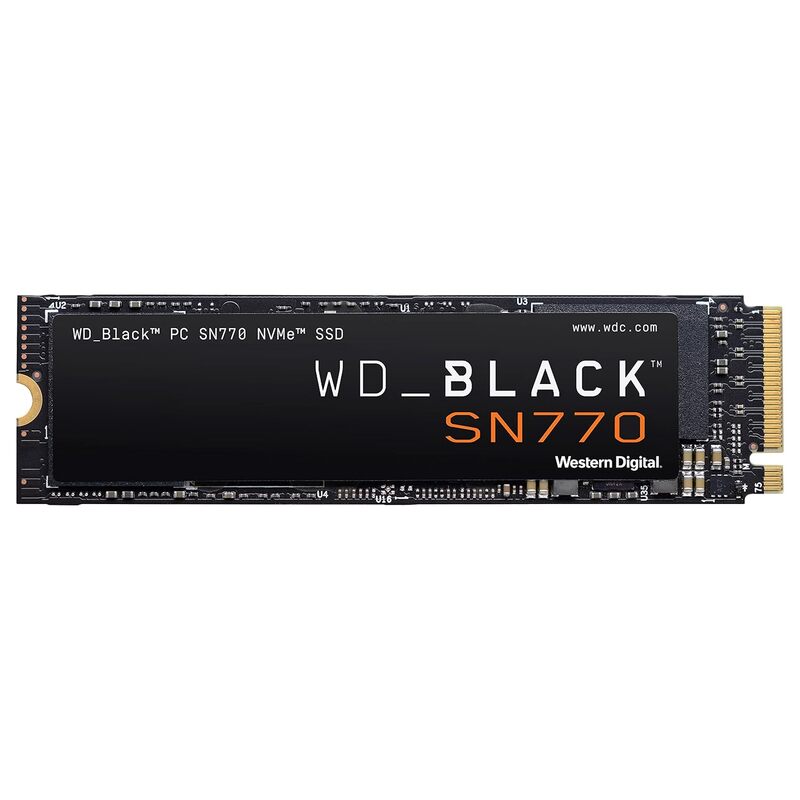

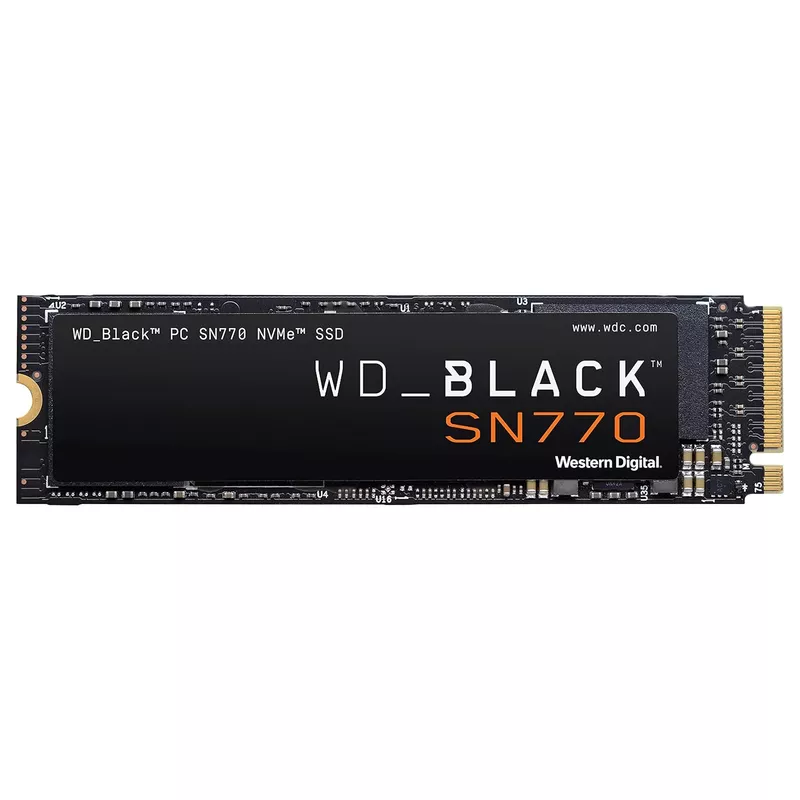

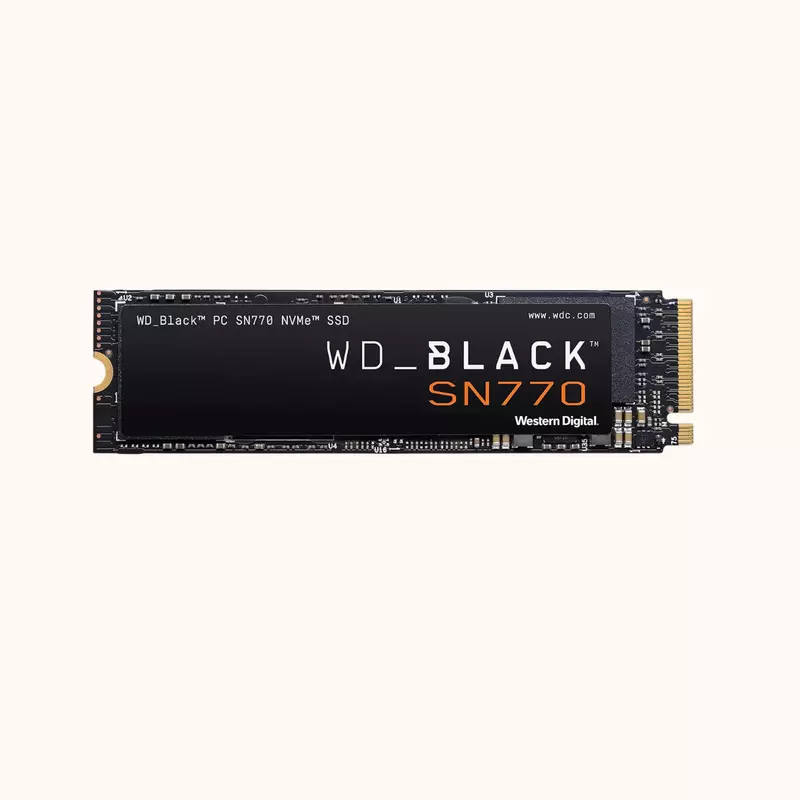

WESTERN DIGITAL WD Black 2TB Internal Solid State Drive (SSD), Desktop, Laptop- WDS200T3X0E
The Western Digital WD_BLACK SN770 (WDS200T3X0E) is a 2 TB high‑performance NVMe solid‑state drive (SSD) in M.2 2280 form factor. Using PCIe 4.0 ×4 interface, it delivers fast read/write speeds (up to ~5,150 MB/s read, ~4,850 MB/s write), making it well suited for gaming, content creation, boot drives, and other demanding tasks. It comes with a 5‑year warranty and solid endurance, optimized for both desktop and laptop use
# | Feature | Details |
|---|---|---|
1 | Model / Line | WD_BLACK SN770, model WDS200T3X0E. |
2 | Capacity | 2 TB. |
3 | Form Factor | M.2 2280 (standard length M.2 module for desktops / laptops / motherboards). |
4 | Interface | PCIe 4.0 ×4 / NVMe. Backward compatible with PCIe Gen3 in many systems. |
5 | Max Sequential Read Speed | Up to ≈ 5,150 MB/s. |
6 | Max Sequential Write Speed | Up to ≈ 4,850 MB/s. |
7 | Random Read IOPS (4KB) | Up to ~650,000 IOPS. |
8 | Random Write IOPS (4KB) | Up to ~800,000 IOPS. |
9 | Endurance / TBW | 1,200 TBW (Terabytes Written). |
10 | Operating Temp & Storage Temp | Operating: 0 °C to 85 °C; Non‑operating (storage): −40 °C to 85 °C. |
11 | Physical Dimensions | Length: ~80 mm; Width: ~22 mm; Height: ~2.38 mm. |
12 | Weight | ~ 5.5 grams (± ~0.5 g). |
13 | Warranty | 5‑year limited warranty. |
14 | Use Cases / Ideal For | Gaming, fast OS / application load times, content creation, storage of large game libraries; suitable for desktops / laptops with NVMe support. |
15 | Strengths & Limitations | Strengths: very fast read/write, good endurance, efficient power usage, backward compatibility, strong brand / support. Limitations: performance may be limited by thermal throttling or by slower motherboard slots; for some workloads random write after heavy use may drop; needs NVMe slot; doesn’t include active heatsink in base model. |
