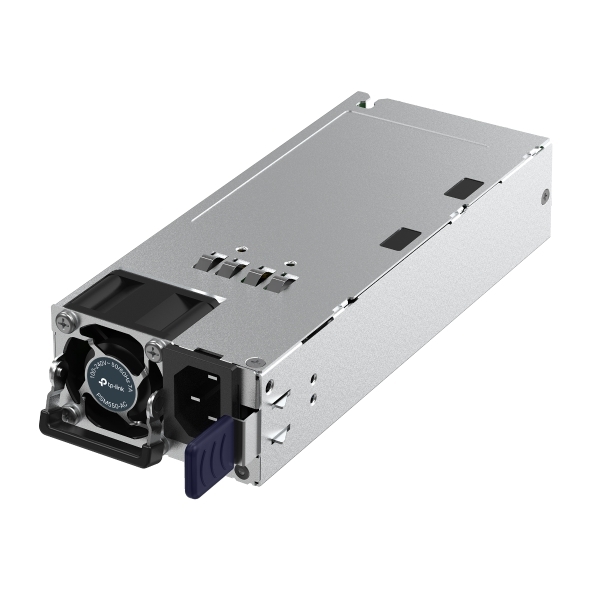

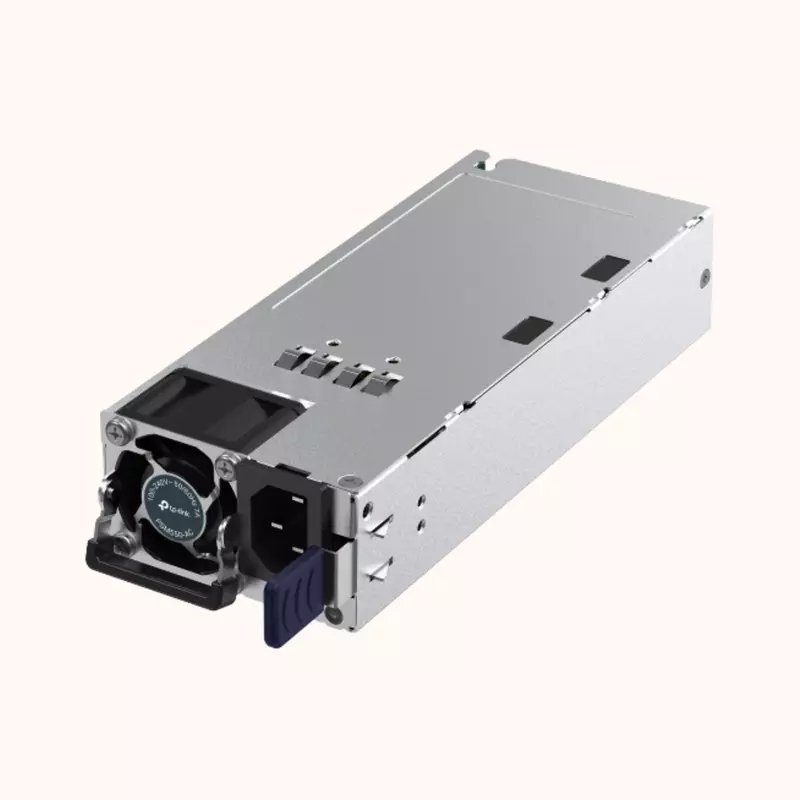

TP-Link Omada PSM550-AC 550W Server/Redundant Switch Power Supply Module - PSM550-AC
Out of stock
Rs. 14,500.00
Rs. 19,999.00
Brand: TP-Link
Model: SX6632YF, S7500-26XF6Y
Series: Omada
Power: 100-240V~ 50/60Hz 7A
Features: Over-voltage, over-current, short circuit, over-temperature protection
Surge Protection: ±4 kV
Product Details
Specifications
Product Details
Product Details
Product Overview
The TP-Link Omada PSM550-AC is a 550W hot swappable AC to DC power supply module for enterprise switches, enabling redundant power configurations. It is compatible with the SX6632YF and S7500-26XF6Y and is not a standard PC power supply.
Key Specifications
- Output: 550W; 12V DC at 45A plus 12Vsb at 2.1A
- Type: fully hot swappable switch PSU module (redundant capable)
- Input: 100 to 240V AC, 50/60Hz
- Protections: surge, over voltage, over current, short circuit and over temperature
- Dimensions: 185 x 73.5 x 40 mm
Ideal For
- Redundant or additional power for compatible Omada enterprise switches
Specifications
Specifications
General
- Wattage550 Watt
- ModularNo
- 80 Plus RatingNot Rated
- Form FactorServer/Redundant
