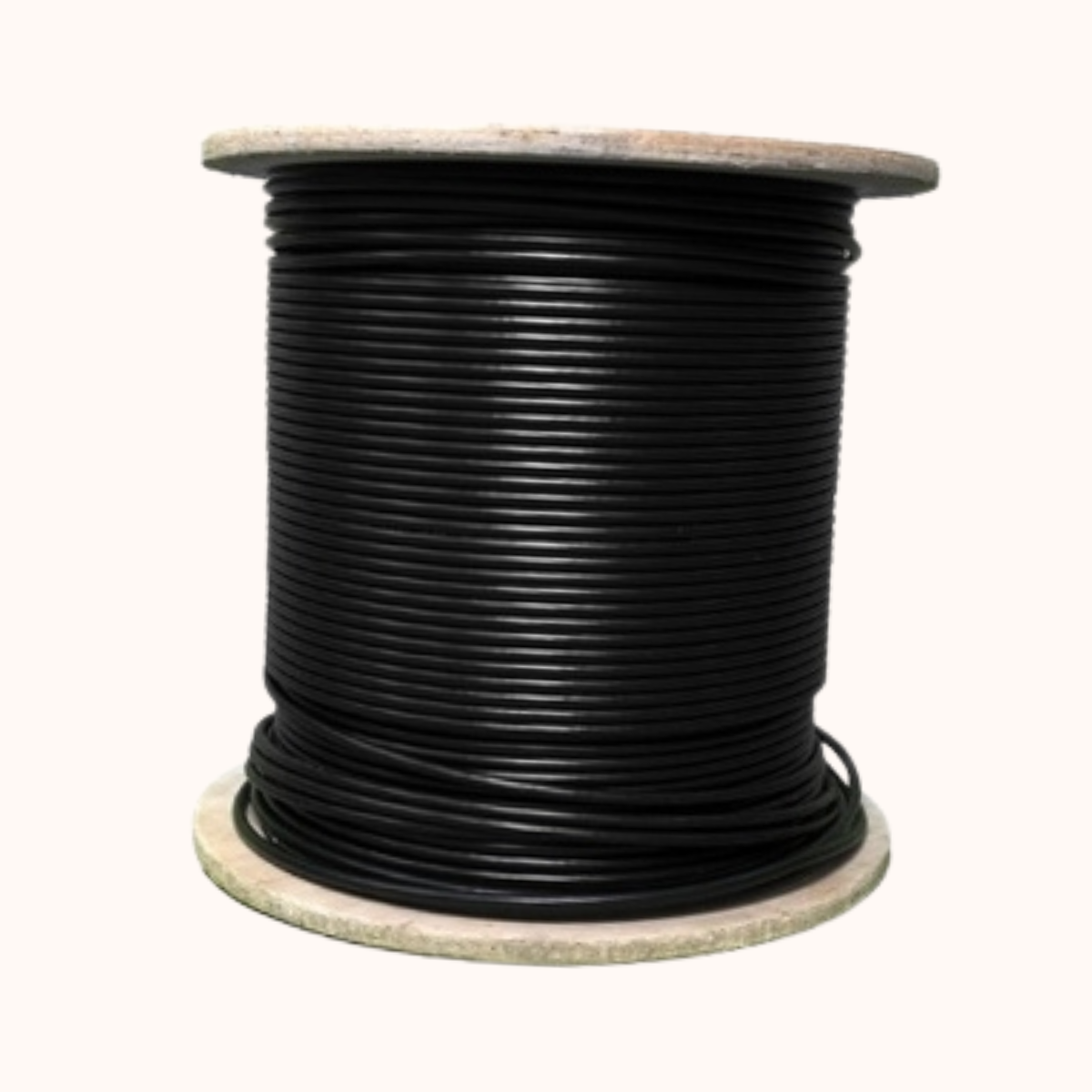

SECURENET 0.57 mm (23 AWG) 8 Meter
Attribute | Details |
|---|---|
Cable Category | CAT6 UTP (Unshielded Twisted Pair) |
Conductor Diameter | 0.57 mm (23 AWG) |
Inner Jacket Material | PVC |
Outer Jacket Material | Fire Retardant PVC (FR PVC) |
Length of Cable | 305 meters (Standard Box Length) |
Operating Temperature Range | -20°C to +70°C |
Storage Temperature Range | -20°C to +70°C |
UL Marking on Cable | Yes |
Attribute | Details |
|---|
Data Transmission Rate | 1000 Mbps (~1 Gbps) |
Frequency Bandwidth | 250 MHz |
Supported Applications | 10BASE-T, 100BASE-TX, 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) |
Maximum DC Resistance | ≤ 100 Ohm/Km |
Conductor Material | Bare Copper |
Conductor Stranding | Solid |
Conductor Insulation Material | Polyethylene |
Inner Jacket Material | PVC |
Internal Cross Separator | Yes (for pair isolation and reduced crosstalk) |
Sequential Length Marking (per meter) | Yes |
Operating Temperature Range | -20°C to +70°C |
Storage Temperature Range | -20°C to +70°C |
General
- Types Of CablesPatch Cord
- UTP Cables TypesCat 6
- Ethernet Cable CategoryCat 6
- Cable ShapeRound
- Outer MaterialCopper
