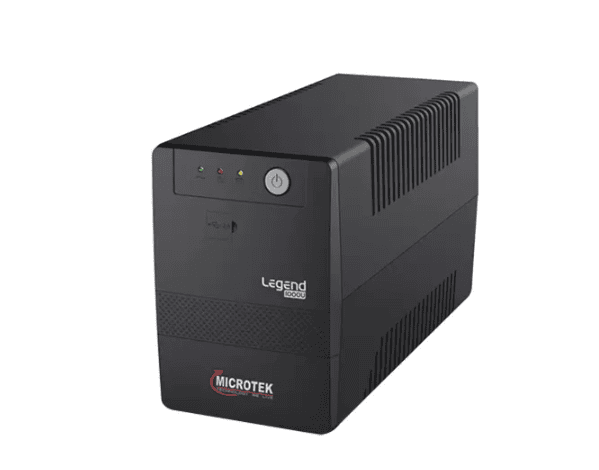

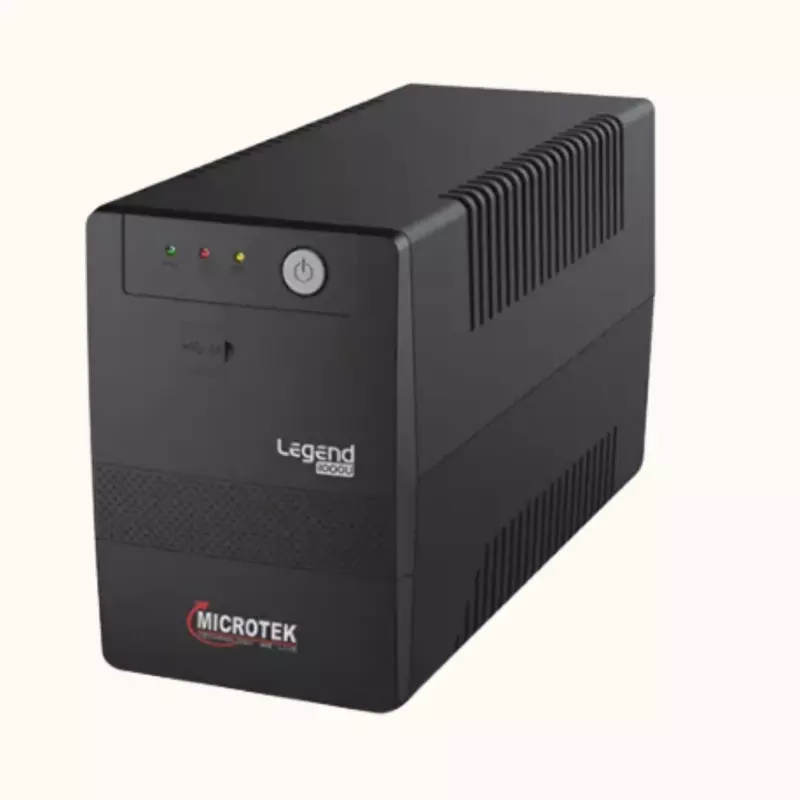

MICROTECH Legend 1000 1KVA UPS

1

Capacity

1000 VA / 600 W.

2

Type

Line‑interactive UPS.

3

Input Voltage Range

~ 140 V to 300 V AC.

4

Nominal Output Voltage

230 V AC.

5

Transfer Time

Typical 4‑8 ms when switching to battery mode.

6

Output Waveform (Battery Mode)

Modified sine wave.

7

Battery Configuration

2 × 12 V / 7 Ah sealed maintenance‑free batteries.

8

Charging Time

~ 6 hours to recover to ~90% capacity.

9

Operating Conditions

Temperature: 0°C to 40°C; Humidity: up to ~90% non‑condensing.

10

Noise Level

Less than ~ 40 dB.

11

Physical Dimensions & Weight

~ 315 × 180 × 183 mm; weight ~ 8.02 kg.

12

Warranty

2 years on UPS electronics; 1 year on battery.

13

Protection Features

Overload protection; protection from overcharge/discharge; boost & buck AVR to stabilize voltage; auto‑restart when AC returns.

14

Special Features

Cold start capability; generator compatibility option; off‑mode charging.

15

Limitations / What to Note

• Modified sine wave output may not be ideal for sensitive / high‑end equipment.
• Backup time depends heavily on load (higher load = much shorter time).
• Battery capacity (7Ah ×2) means moderate runtime only.
• Ensure sufficient capacity margin if running a gaming PC or heavy load.
