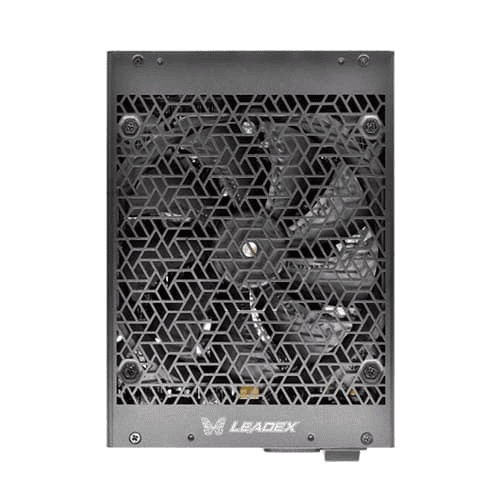

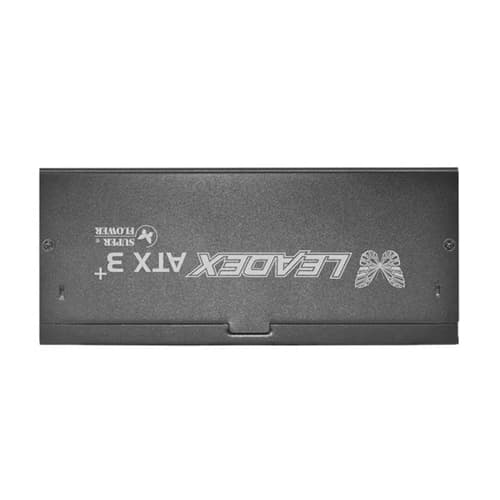

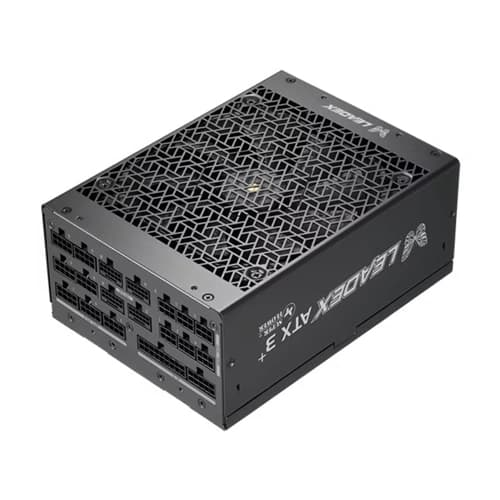

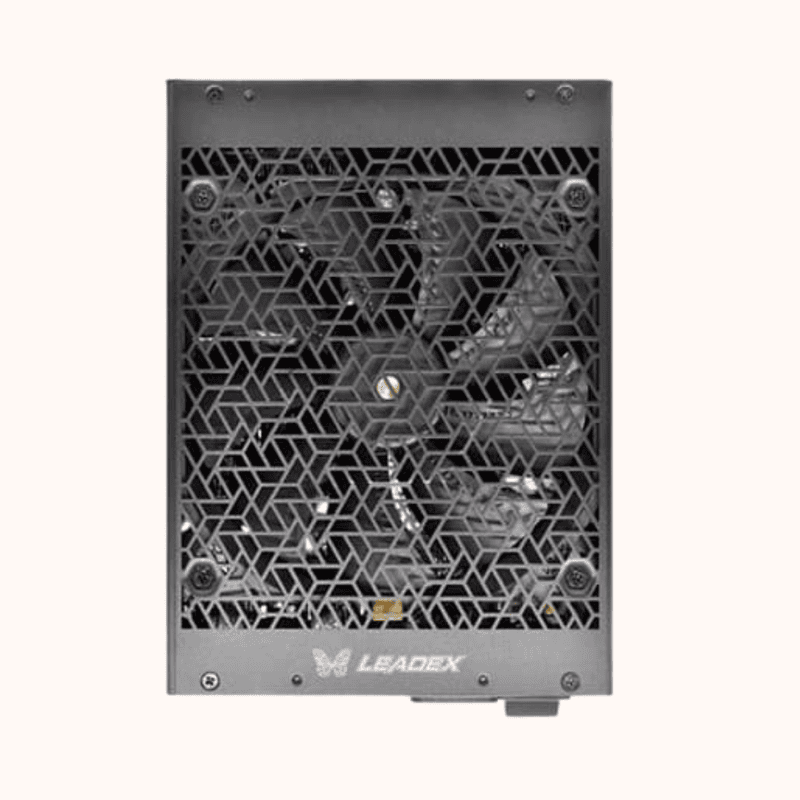

Super Flower Leadex Titanium 2800W 80 Plus Titanium Fully Modular ATX Power Supply - SF-2800F14HP
Brand: Super
Series: LEADEX TITANIUM
Compatibility: Supports Intel & AMD multi-core CPUs; Compatible with ATX / BTX motherboards.
Power: Bridgeless PFC + Full-Bridge LLC Resonant Circuit Design for ultra-stable power delivery.
Modular Cabling: 100% Fully Modular Design for clean and efficient cable management.
Efficiency Certification: Cybenetics Titanium Certified (230V Input, ≥93% to <95% Overall Efficiency).
Product Overview
The Super Flower Leadex Titanium 2800W is a fully modular flagship ATX 3.1 power supply that is Cybenetics Titanium certified, reaching around 93 per cent efficiency at 230V. Running on a 200 to 240V input, it provides four native 12V-2x6 (600W) connectors, making it suited to quad GPU AI, compute and rendering rigs. A 140mm fluid dynamic bearing fan with an ECO fanless mode handles cooling.
Key Specifications
- Continuous output: 2800W (200 to 240V input only)
- Efficiency: 80 Plus Titanium class (Cybenetics Titanium, about 93 per cent at 230V)
- Modularity: fully modular
- Form factor: ATX
- Standards: ATX 3.1 and PCIe 5.1
- 12V-2x6 connectors: 4 (600W each, native)
- PCIe 6+2 pin connectors: 6
- EPS 12V (CPU): 2
- SATA connectors: 16
- 4 pin peripheral (Molex): 4
- Single +12V rail
- Cooling: 140mm fluid dynamic bearing fan with ECO fanless mode
- Protections: OVP, UVP, OPP, OCP, OTP and SCP
- Dimensions: 150 x 85 x 200 mm
- Warranty: 10 years
Ideal For
- Quad GPU AI training, compute and rendering workstations
- Extreme multi GPU 200 to 240V systems
- Users needing multiple native 12V-2x6 connectors
General
- Wattage2800 Watt
- ModularFully Modular
- PCIe Connector (6+2)6
- SATA Connector16
- Peripheral (4-Pin)4
- 80 Plus Rating80 Plus Titanium
- Form FactorATX
