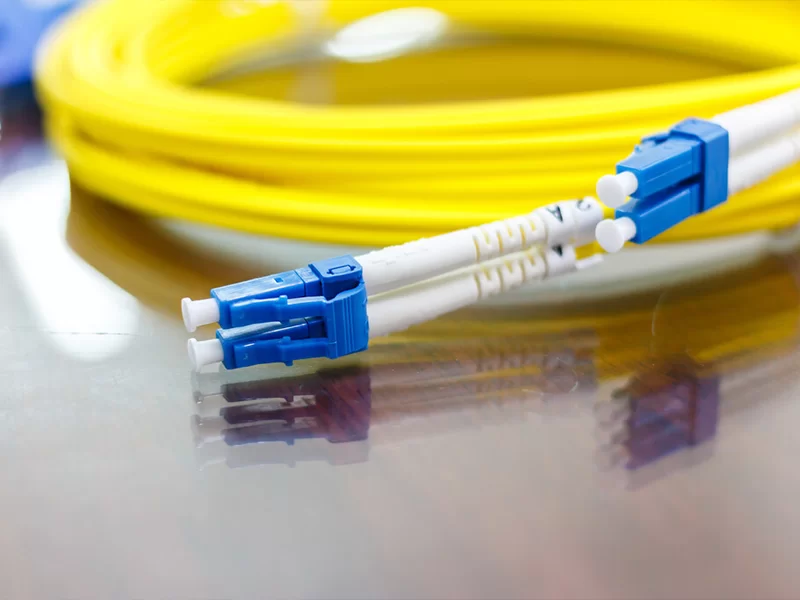

Delton Fiber OFC Patch Cord
Fiber Optic Cable – LSZH Jacket Features
Feature | Description |
|---|---|
LSZH Jacket | Reduces toxic gases emitted during combustion |
Testing | 100% factory tested |
Performance | Low insertion loss and return loss |
Fiber Type | Available with Corning fiber |
Connector Options | Available in PC/APC types |
Ferrule | High precision ceramic ferrule with good concentricity |
Mode Availability | Available in simplex and duplex modes |
Connector Type | Fiber Type | Attenuation (dB) | Reflection (dB) | Operating Temp (°C) | Storage Temp (°C) | Cable Rating |
|---|---|---|---|---|---|---|
SC/UPC | Singlemode | 0.3 | -45 | -40 to 85 | -40 to 85 | Riser |
SC/UPC | Multimode (50 µm) | 0.2 | -30 | -40 to 85 | -40 to 85 | Riser |
SC/APC | Singlemode | 0.3 | -45 | -40 to 85 | -40 to 85 | Riser |
SC/APC | Multimode (50 µm) | 0.2 | -30 | -40 to 85 | -40 to 85 | Riser |
LC/UPC | Singlemode | 0.3 | -45 | -40 to 85 | -40 to 85 | Riser |
LC/UPC | Multimode (50 µm) | 0.2 | -30 | -40 to 85 | -40 to 85 | Riser |
General
- Types Of CablesFiber
- Patch Cord Cable TypeLOMM
- Connector 1 GenderMale
- Connector 1SC
- Connector 2 GenderMale
- Connector 2SC
- Outer MaterialPolyvinyl Chloride (PVC)
- Product ColourYellow
Size
- Item Weight33 to 65 g
