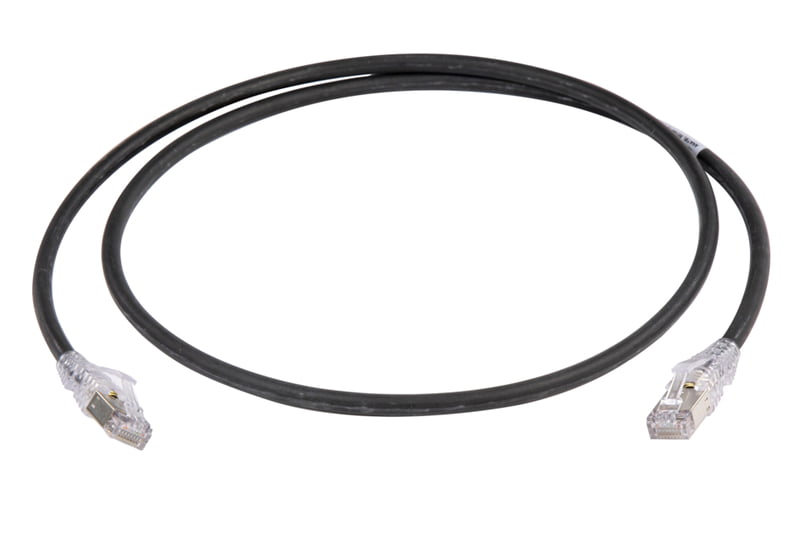

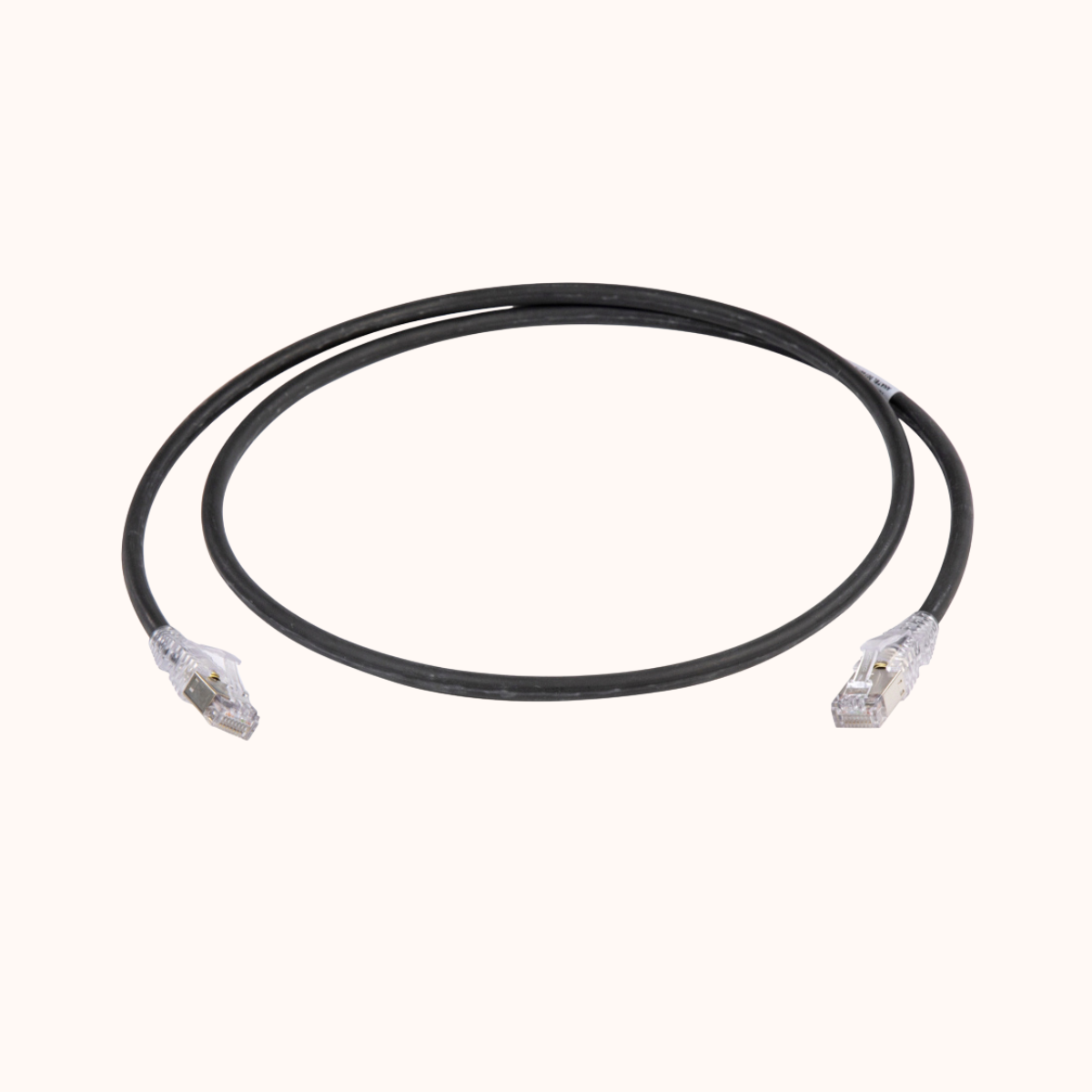

CommScop Cat 6A Patch Cord Grey 3MTR (NPC6ASZDB-GY003M)
Category | Details |
|---|---|
Product Name | CommScope NETCONNECT® Cat 6A S/FTP RJ45 Patch Cord |
Part Number | NPC6ASZDB-GY003M |
Length | 3 meters |
Color | Gray |
Cable Type | S/FTP (Shielded Foiled Twisted Pair) |
Conductor Type | Stranded, 26 AWG |
Connector Type | RJ45 plug (both ends) |
Wiring Standard | T568B |
Pairs | 4 |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
Outer Diameter | 5.84 mm (0.230 in) |
Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, IEEE 802.3bt Type 4 |
Safety Voltage Rating | 300 V |
Plug Insertion Life | Minimum 750 cycles |
Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Relative Humidity | Up to 93%, non-condensing |
Environmental Compliance | RoHS, REACH-SVHC, UK-ROHS, CHINA-ROHS |
Certifications | UL 1863, Anatel |
Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
Packaging Quantity | 1 |
Warranty | Typically covered under CommScope's standard product warranty |
General
- Types Of CablesPatch Cord
- UTP Cables TypesCat 6A
- Product ColourGrey
Size
- Item Length3 m
- Item Weight33 to 65 g
