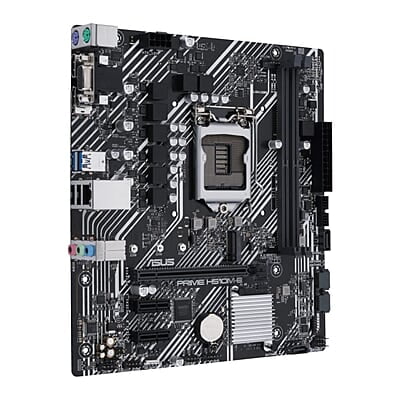

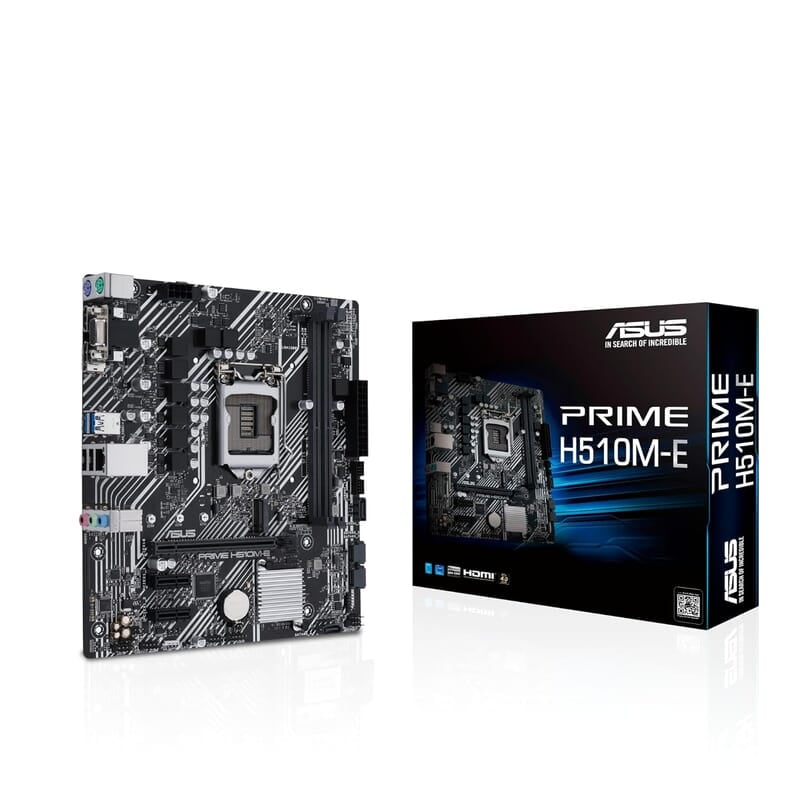

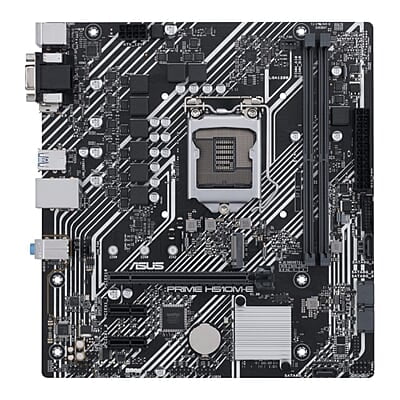

ASUS Prime H510M-E H510 Micro-ATX Motherboard (LGA 1200, DDR4) - PRIME H510M-E

Product Overview

The ASUS Prime H510M-E is a compact micro-ATX motherboard on the Intel H510 chipset, supporting 10th and 11th Gen Intel Core processors on the LGA 1200 socket. It is a dependable, value-focused board for everyday desktops and entry-level builds.

Key Specifications

• Intel H510 chipset, LGA 1200 socket
• Supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors
• 2 x DDR4 DIMM slots, up to 64GB, DDR4 3200 (OC) with XMP
• 1 x PCIe x16 slot (PCIe 4.0 with 11th Gen, PCIe 3.0 with 10th Gen) and 2 x PCIe 3.0 x1
• 1 x M.2 slot (PCIe 3.0 x4 and SATA modes)
• Micro-ATX form factor (22.6cm x 21.1cm)
• Rear I/O includes 2 x USB 3.2 Gen 1 Type-A, DisplayPort 1.4, HDMI and D-Sub
• Intel I219-V 1Gb Ethernet
• Realtek ALC897/887 7.1 surround audio

Ideal For

• Budget and office desktop builds
• 10th or 11th Gen Intel systems needing a compact board
• Everyday computing and light multitasking
