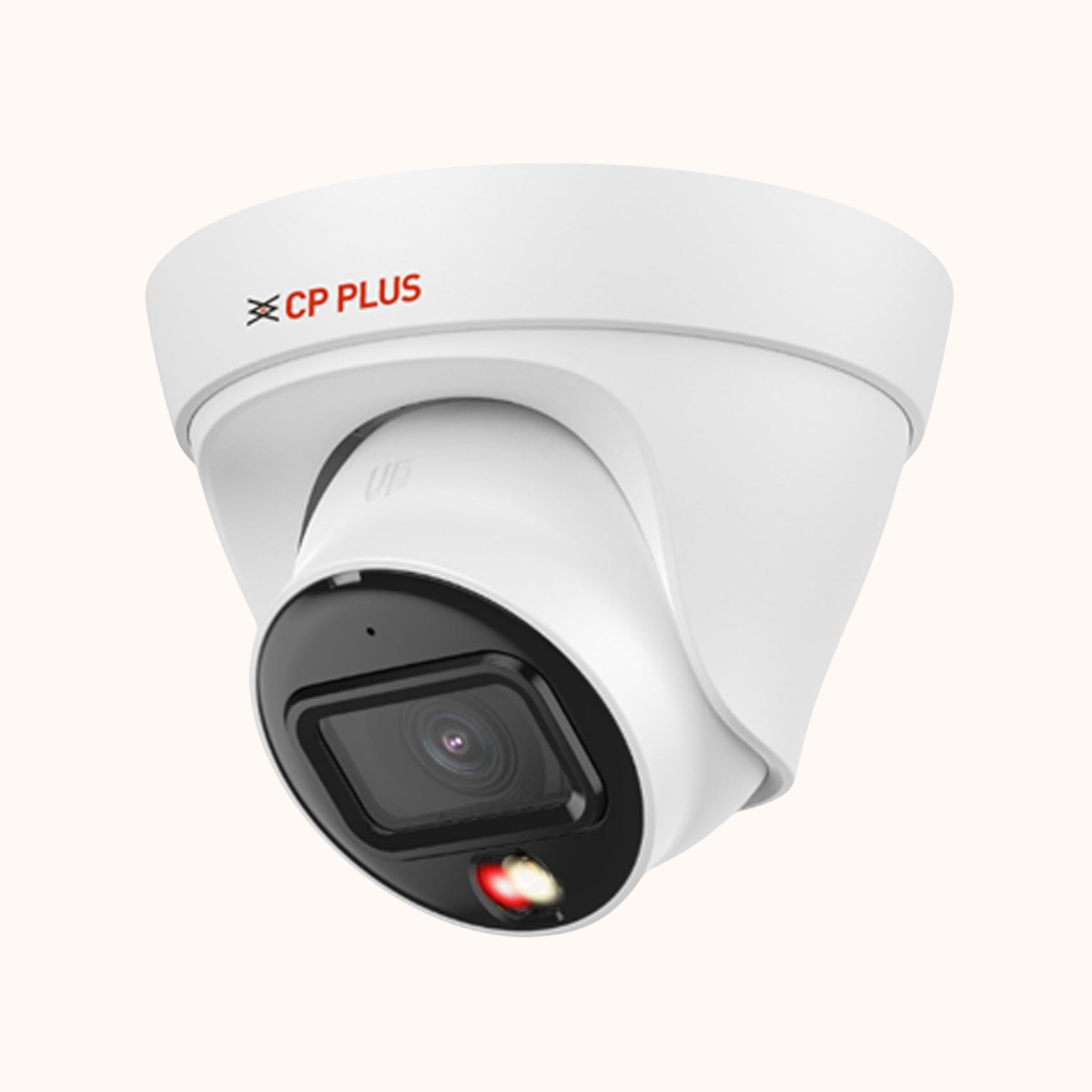

CP Plus 4MP Full HD IP Indoor Dome Camera | STQC Model | Built-in Mic | Color Night Vision- CP-UNC-DA41L3C-LQ
Camera Resolution | 4MP |
Camera Style | Dome Camera |
Camera Pixel | 3840 X 2160 |
IR Range | IP67 |
Color | White |
Lens Mount | M12*P 0.5 |
Focal Length | 2.8/4 mm |
Brand | TP Link |
Model Number | VIGI S485 |
Camera Technology | Turret Network Camera |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Aperture | F1.6 |
Day/Night Mechanism | IR Cut Filter |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Camera Specifications
Feature | Specification |
|---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens Specifications
Type | Fixed Focal Lens |
|---|---|
Focal Length | 2.8 mm / 4 mm |
Aperture | F1.6 |
Lens Mount | M12*P 0.5 |
Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.8 mm | 111.4° | 58.8° | 134° |
4 mm | 91.5° | 46.1° | 109.6° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 85 m (278 ft) | 35 m (116 ft) | 17 m (56 ft) | 8 m (28 ft) |
4 mm | 107 m (350 ft) | 44 m (146 ft) | 21 m (70 ft) | 11 m (35 ft) |
Angle Adjustment (Manual)
Pan | 0° to 360° |
|---|---|
Tilt | 0° to 85° |
Rotation | 0° to 360° |
Illuminator
IR LED | Quantity: 4<br>Range: 30 m<br>Wavelength: 850 nm |
|---|---|
White LED | Quantity: 4 |
Illuminator Control | Auto / Scheduled / Always On / Always Off |
Video
| Max. Resolution| 3840 × 2160 (≈8 MP) |
