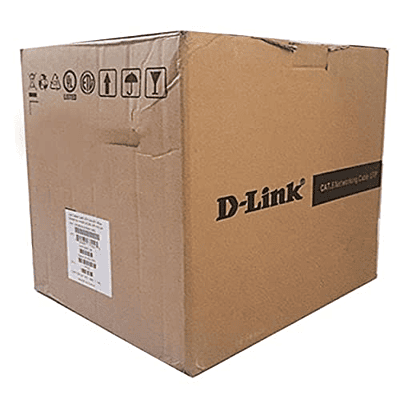

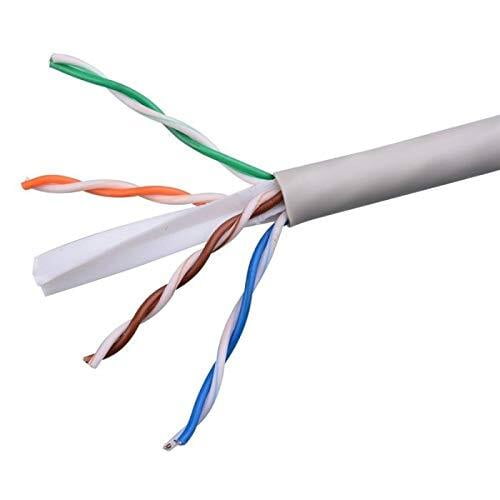

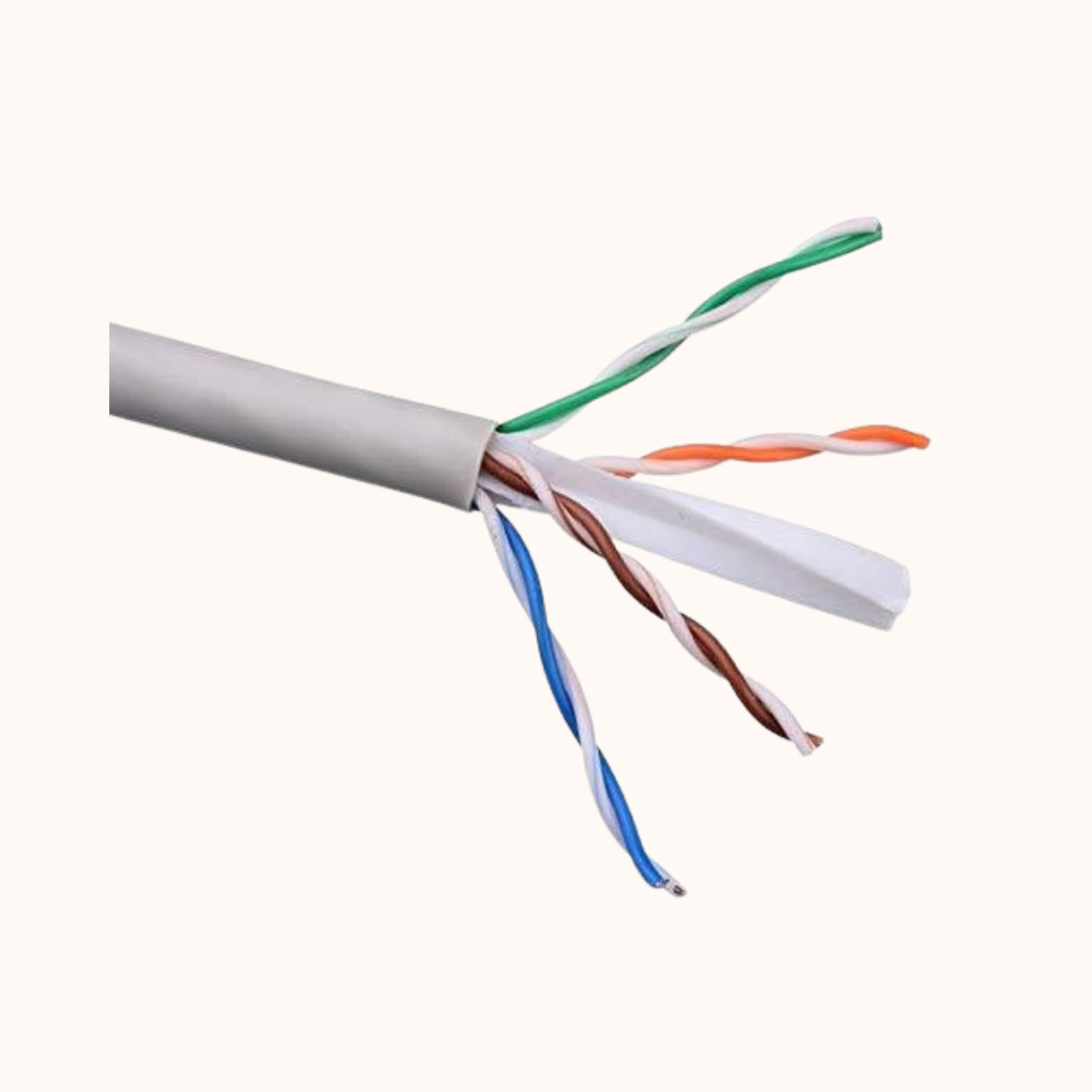

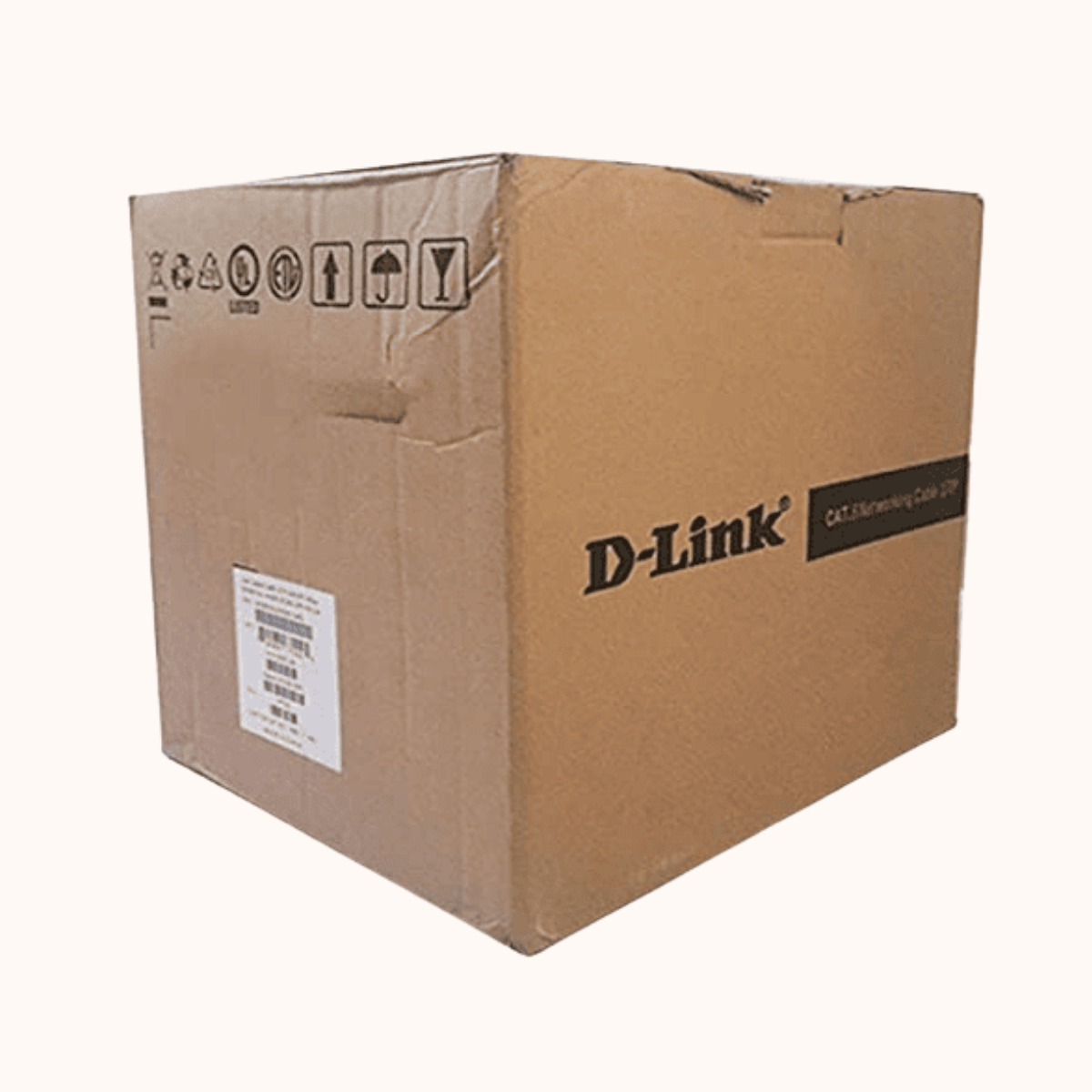

D-Link CAT 6 Cable 305 MTR (NCB-C6UGRYR-89)
Out of stock
Rs. 11,499.00
Rs. 12,999.00
Feature | Description |
|---|---|
Brand | D-Link |
Type | LAN Cable |
Cable Type | Cat6 1000 Mbps Speed |
UTP/STP | Unshielded Twisted Pair (UTP) |
Connector 1 | USB Type A |
Connector 2 | CAT6 |
Cable Structure | Stranded Round |
Cable Frequency | 250 MHz |
Product Details
Specifications
Product Details
Product Details
Feature | Description |
|---|---|
Ethernet Transmission Standard | 1000Base-T |
Part Number | NCB-C6UGRYR-305 |
Model | NCB-C6UGRYR-305 |
Compatible Devices | Computer |
Color | Grey |
Suitable For | RJ45 CAT 6 LAN |
Cable Length | 305 m |
Material (Conductor) | 0.57 mm Bare Copper 23AWG x 4 pairs |
Nominal Outer Diameter | 6.1 mm |
Jacket | PVC Jacket |
Jacket Hardness | 45P (90A ± 2A, Shore) |
Insulation | HDPE Insulation |
Insulation Feature | Two insulated conductors twisted together |
Rating Temperature | 75 °C |
Dielectric Strength | 0.75 kV/m |
Nominal Impedance | 100 ohms |
Propagation Delay Skew | 45 nS / 100M |
Voltage Rating | 72 V |
Specifications
Specifications
General
- UTP Cables TypesCat 6
- Cable Connector GenderMale-to-Male
- Ethernet Cable CategoryCat 6
- Connector 1 GenderMale
- Connector 2 GenderMale
- Cable ShapeRound
- Outer MaterialCopper
- Product ColourGrey
Size
- Item Length305 m
