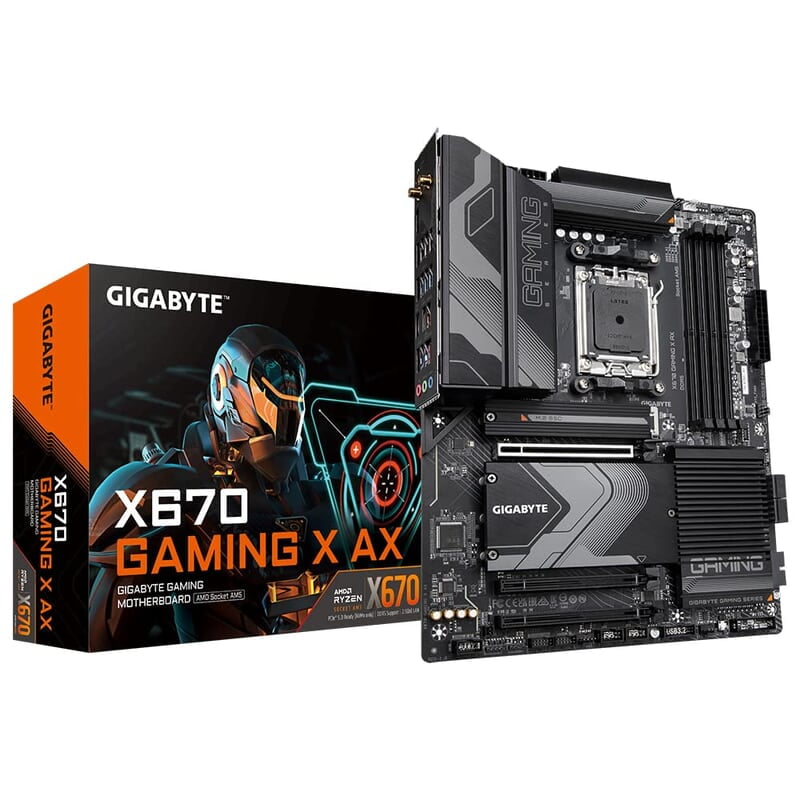

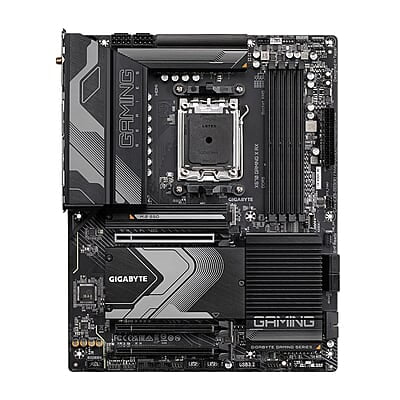

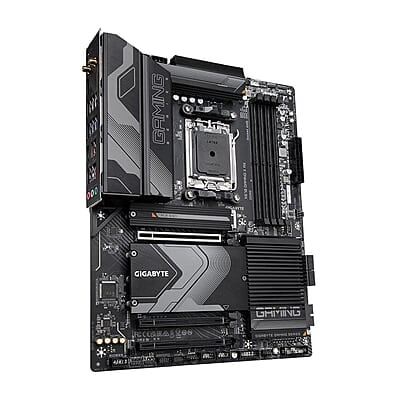

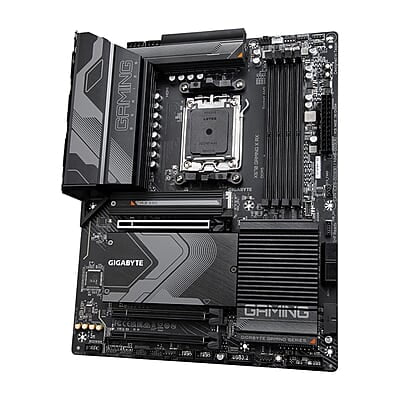

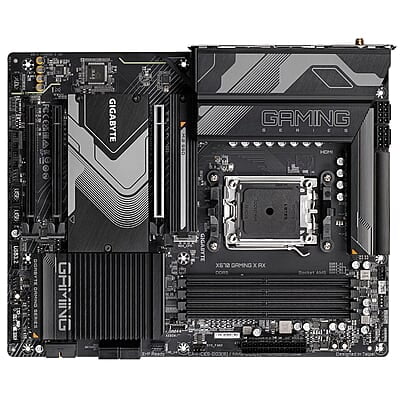

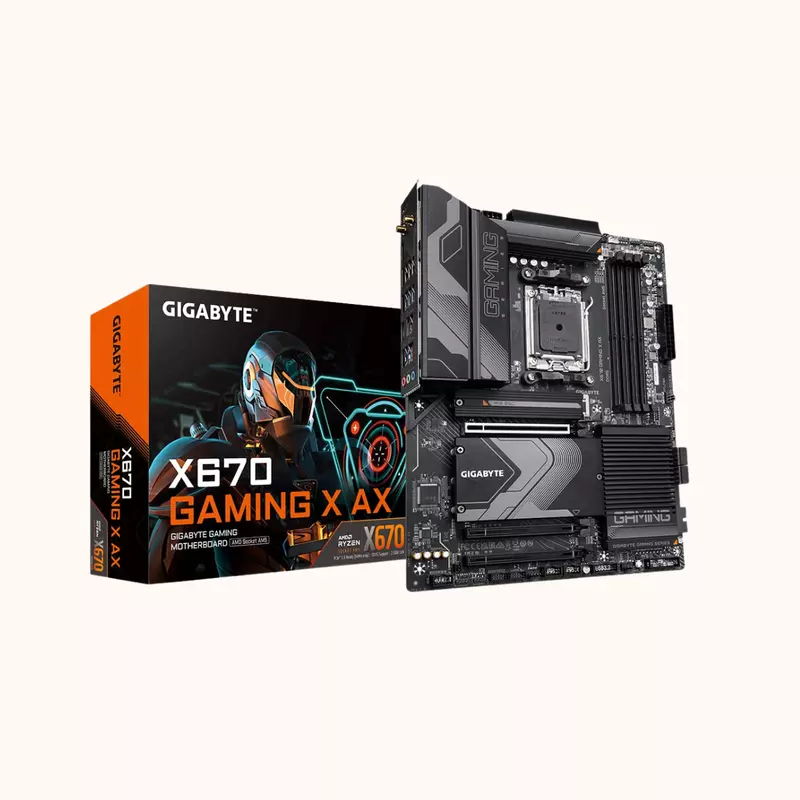

Gigabyte X670 Gaming X AX X670 ATX Motherboard (AM5, DDR5) - X670 GAMING X AX
Out of stock
Rs. 23,000.00
Rs. 39,999.00
Brand: Gigabyte
Form Factor: ATX
Ports: 8 x USB ports (including 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0)
Features: Supports AMD Ryzen 7000 Series CPUs, PCIe 5.0, Thunderbolt 4 (via add-on card), Dual BIOS
Compatibility: AM5
Power: 12+2+2 Phase Power Design, 8+4 pin power connectors
Product Details
Specifications
Product Details
Product Details
Product Overview
The Gigabyte X670 Gaming X AX is an ATX motherboard on the AMD X670 chipset for AM5 Ryzen processors. It offers DDR5, quad M.2 storage with PCIe 5.0 support, Wi-Fi 6E and 2.5Gb networking for high-performance AMD builds.
Key Specifications
- AMD X670 chipset, AM5 socket
- Supports AMD Ryzen 7000, 8000 and 9000 Series processors
- 4 x DDR5 DIMM slots, up to 256GB, DDR5 up to 8000 (OC)
- 1 x CPU PCIe 4.0 x16 slot plus chipset PCIe 4.0 and 3.0 slots
- 4 x M.2 slots (one CPU M.2 up to PCIe 5.0)
- ATX form factor (30.5cm x 24.4cm)

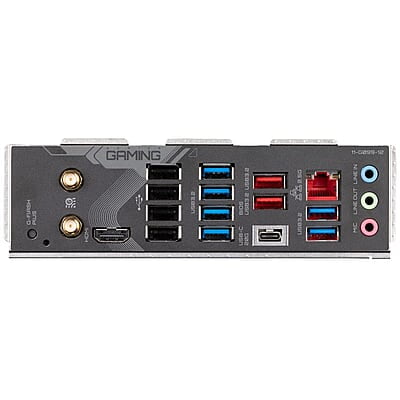

- Rear I/O includes HDMI, USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-A
- Realtek 2.5GbE LAN and AMD Wi-Fi 6E RZ616 with Bluetooth 5.2
- Realtek High Definition 7.1 audio
Ideal For
- High-performance AMD Ryzen gaming builds
- Users needing four M.2 drives
- Systems wanting DDR5 and Wi-Fi 6E on X670
Specifications
Specifications
Processor
- RAM Memory TechnologyDDR5
- PlatformAMD
- Processor SocketAM5
- Memory Slots4
- ChipsetX670
- Form FactorATX
