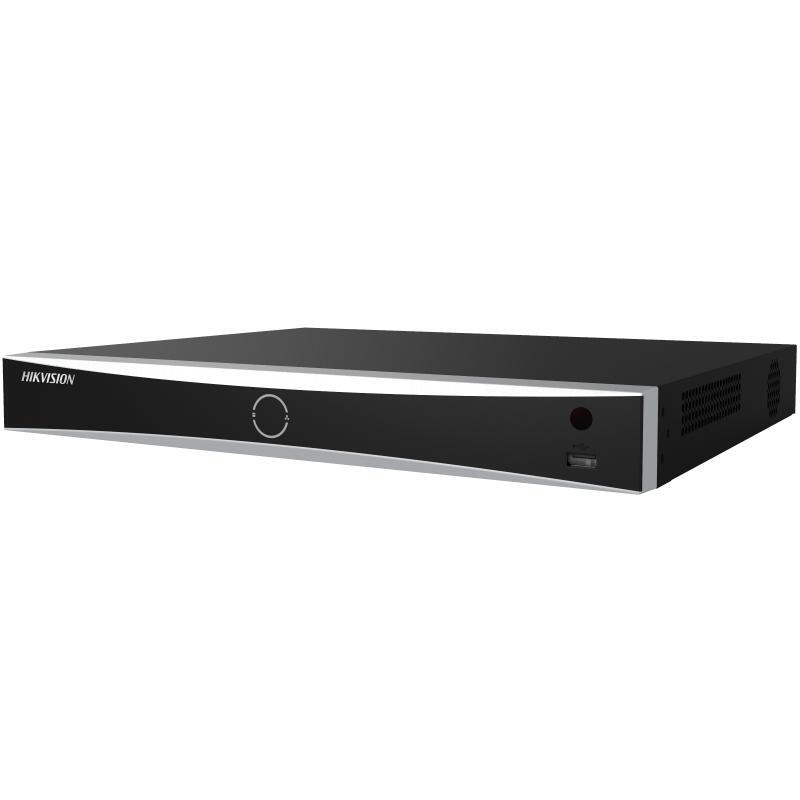

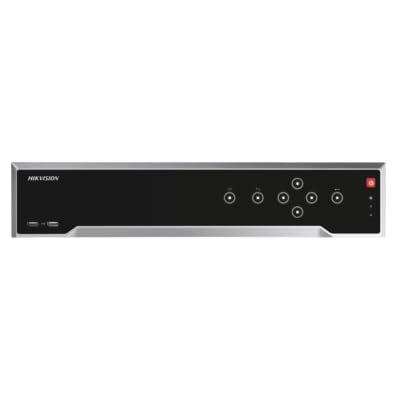

Hikvision 32Channel NVR -DS-7632NXI-K2

1

Channel Support

Up to 32 IP camera inputs.

2

Video Compression

Supports H.265+, H.265, H.264+, H.264 formats.

3

Incoming Bandwidth

Up to 256 Mbps for all inputs.

4

Outgoing Bandwidth (Stream/Remote)

~ 160 Mbps outgoing network bandwidth.

5

Decoding Capacity

Depending on resolution / whether AI/Cameras features are used: e.g. multiple channels at 12MP, 8MP, 4MP or 1080p. (The spec sheet gives combinations like 2‑ch @12MP, 3‑ch @8MP, etc.)

6

Smart Analytics / AI Features

AcuSense technology (human/vehicle detection), motion detection 2.0, facial recognition, perimeter protection, ANPR in some versions.

7

Storage (HDD)

2 SATA interfaces for HDDs; each HDD bay supports up to ~10‑16 TB depending on variant.

8

Video Output Ports

HDMI (4K @ 30 Hz) + VGA output. Independent outputs.

9

USB Interfaces

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0.

10

Network Interface

1 RJ‑45 Gigabit Ethernet (10/100/1000 Mbps) for LAN / remote connection.

11

Alarm In/Out & Audio

Alarm input/output (4 in /1 out); audio input/output (RCA) for two‑way or one way in some models.

12

Power Consumption & Supply

12 V DC, ~3.3 A; power consumption ≤ ~15 W without HDDs.

13

Operating Environment

Temperature: ‑10 °C to +55 °C. Humidity: 10% to 90%.

14

Physical Dimensions & Weight

Dimensions ~ 385 mm × 315 mm × 52 mm (W × D × H); Weight ≤ ~1 kg (without HDDs).

15

Miscellaneous / Protocols & Compatibility

ONVIF Profile S/G, support SDK & ISAPI; remote connections up to 128; compatible with web browsers; multilingual GUI; etc
