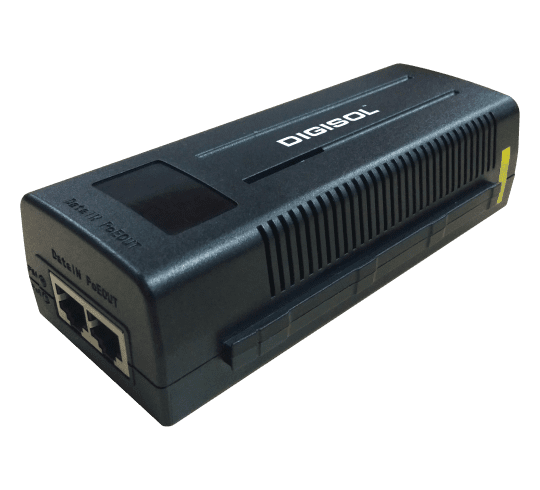

Digisol 48V DC Desktop Mount Gigabit Ethernet PoE Injector-DG-PE2248D (H/W Ver. B1)
Key Features
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE802.3af/ IEEE802.3at Standards
Transmits electrical power and data on the single Ethernet Cable
Compatible with IEEE802.3af/ IEEE802.3at compliant devices
Supplies power up to 30 watts
Integrated power module
Plug-and-Play installation
Compact Design
Technical Specifications
Category | Item | Description |
|---|---|---|

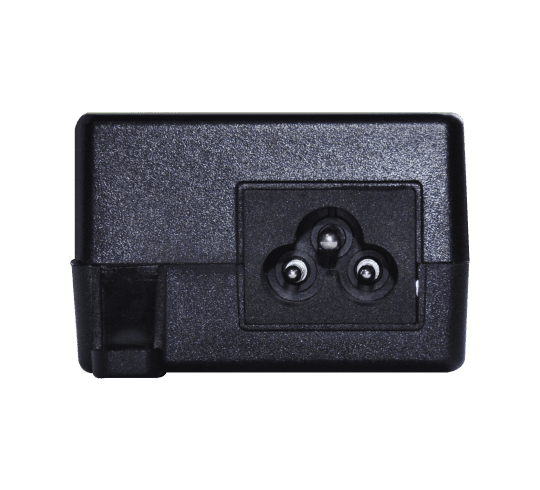

Hardware Specifications | Power Connector | One |

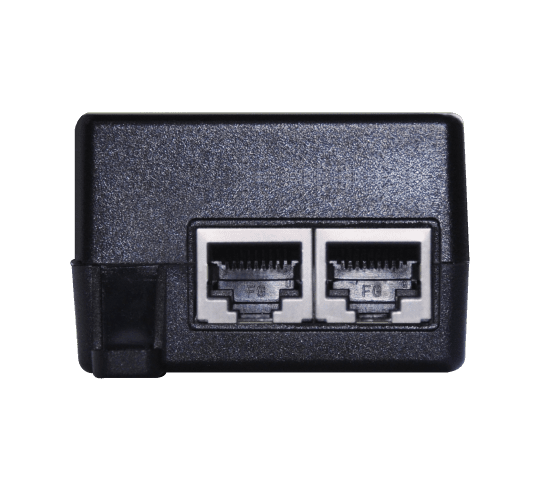

Ethernet Data In Port | One 10/100/1000 Mbps | |
Ethernet PoE Out Port | One 10/100/1000 Mbps | |
Standard Compliance | Ethernet | IEEE802.3 10Base-T Ethernet |
Fast Ethernet | IEEE802.3u 100Base-TX Fast Ethernet | |
PoE | IEEE802.3af/IEEE802.3at Power over Ethernet (PoE) | |
Gigabit Ethernet | IEEE802.3ab 1000BASE-T Gigabit Ethernet | |
Ethernet Pin Usage |
| Data: Pin No. 1, 2, 3, 6 |
LED Indicator |
| Power, PoE |
Data Transfer rates |
| 1000 Mbps |
Network Cables |
| 100Base-Tx: UTP Cat5/ 5e/ 6 (100m) |
Power | Input | AC 100~ 240V, 50~ 60Hz |
PoE Out | 48V~52V DC | |
Environmental Specifications | Operating Temperature | 0º C to 40º C |
Storage Temperature | -10º C to 60º C | |
Operating Humidity | 10% to 90% RH, non-condensing | |
Storage Humidity | 5% to 90% RH, non-condensing | |
Dimension | Net | 143 (L) x 60 (W) x 40 (H)mm |
Gross | 175 (L) x 115 (W) x 60 (H)mm | |
Weight | Net | 0.17kg |
