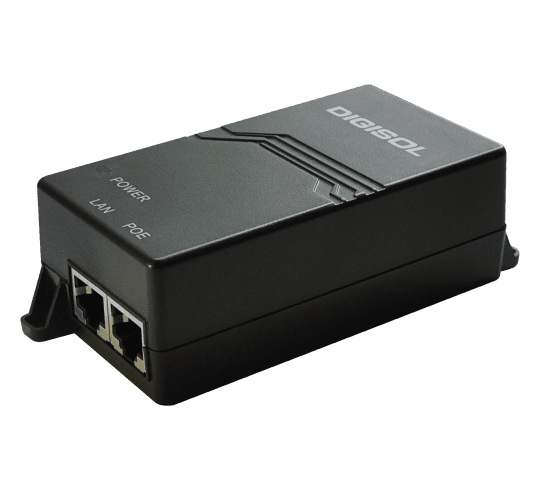

Digisol 48V DC Desktop Mount Fast Ethernet PoE Injector-DG-PE1148D (H/W Ver. C1)
Key Features
Complies with IEEE802.3, IEEE802.3u, IEEE802.3at and IEEE802.3af Standards
Transmits electrical power and data on the single Ethernet Cable
Compatible with IEEE802.3af/ IEEE802.3at compliant devices
Integrated power module
Plug-and-Play installation
Compact Design
Technical Specifications
Category | Item | Description |
|---|---|---|

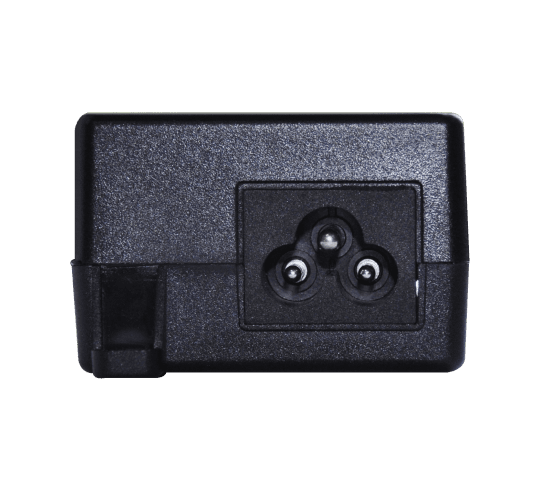

Hardware Specifications | Power Connector | One |

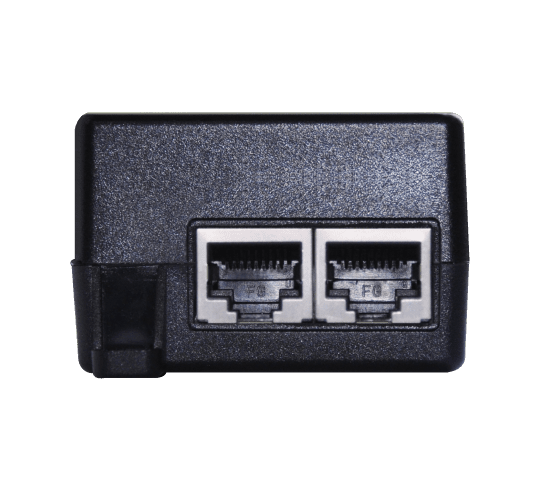

Ethernet LAN Port | One 10/100 Mbps | |
Ethernet PoE Port | One 10/100 Mbps | |
Standard Compliance | Ethernet | IEEE802.3 10Base-T Ethernet |
Fast Ethernet | IEEE802.3u 100Base-TX Fast Ethernet | |
PoE | IEEE802.3af/ IEEE802.3at Power over Ethernet (PoE) | |
Ethernet Pin Usage |
| Data: Pin No. 1,2,3,6 |
LED Indicator |
| Power |
Data Transfer rates | Half-Duplex | 100 Mbps |
Full-Duplex | 200 Mbps | |
Network Cables |
| 100Base-Tx: UTP Cat5/5e (100m) |
Power | Input | AC 100~ 240V, 50~ 60Hz |
PoE Out | 48V DC, 0.5A | |
Environmental Specifications | Operating Temperature | -10º C to 40 º C |
Storage Temperature | -30 º C to 80 º C | |
Operating Humidity | 10% to 95% | |
Storage Humidity | 10% to 95% | |
Dimension | Net | 115(L) x 54 (W) x 35 (H)mm |
Weight | Net | 160gms |
