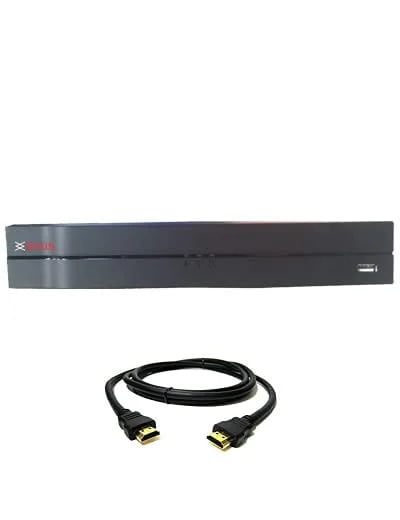

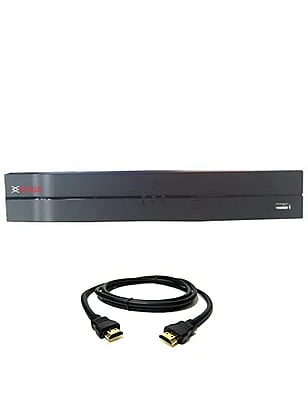

CP Plus 8 Channel Embedded NVR(8CH.NVR)
Rs.3,780.00 Rs.4,000.00
Out of stock
Tags:
Dual-core embedded processor Operating System Embedded LINUX IP Camera Input 8 channel User Interface GUI Video Output 1 HDMI, 1 VGA Compression H.265+/H.264+ Video Resolution 1920×1080, 1280×1024, 1280×720 Video Recording 40Mbps, 6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. Video Display Split 1/4/8/9 Motion Detection MD Zones: 396(22×18). Video Loss Supports Camera Blank Supports Hard Disk 1 SATA III ports, up to 4TB Each Smart Phone iPhone, iPad, Android Phone
Product Details
Specifications
- Processor: Dual-core embedded processor
- Operating System: Embedded LINUX
- IP Camera Input: 8 channels
- User Interface: GUI
- Video Output: 1 HDMI, 1 VGA
- Compression: H.265+/H.264+
- Video Resolution: 1920×1080, 1280×1024, 1280×720
- Video Recording: Up to 40Mbps, supports various resolutions including 6MP/5MP/4MP/3MP/1080P/720P/D1, etc.
- Video Display Split: 1/4/8/9
- Motion Detection: Supports multiple motion detection zones (396 zones in total)
- Video Loss and Camera Blank support
- Hard Disk: Supports 1 SATA III port, up to 4TB each
- Smart Phone Compatibility: iPhone, iPad, Android Phone
- Trigger Events: Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
- Recording Mode: Manual, Schedule, Motion Detection, Stop
- Search Mode: Time/Date, Motion Detection, Exact search (accurate to the second)
- Playback: Various playback options including play, pause, rewind, fast play, slow play, etc.
- Backup Mode: USB Device / Network
- Interface Ports: 1 HDMI, 1 VGA, 2 USB Ports (2.0)
- Record Interval: Adjustable record intervals with pre-record and post-record options
- Max User Account: Supports up to 128 users
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Protocols: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search, ONVIF, SDK, CGI Conformant
- Power Supply: Single, DC48V/2A
- Power Consumption: Less than 4.29W (without HDD)
- Working Temperature: -10°C to +45°C
- Dimension: 260mm x 227mm x 47.6mm
- Weight: 2kg (without HDD
General
- Product TypeNVR
- HDD Capacity8TB
- Channels Quantity8 Channels
- Megapixel (Approx.)5 MP
- Night VisionYes
- Mic SupportedYes
