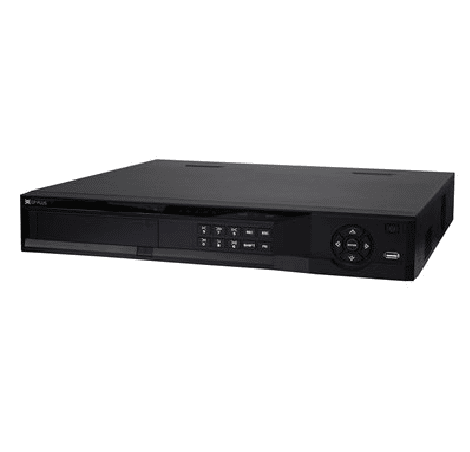

CP Plus 32 Ch. (4K) Network Video Recorder(CP-UNR-4K4324-V2)
Rs.21,735.00 Rs.49,999.00
Out of stock
Tags:
Up to 32 channel IP camera input H.265/H.264 dual codec decoding Up to 8Mp resolution preview and playback Max 200Mbps incoming bandwidth Support 4 SATA HDDs up to 24TB, 2 USB(1 USB3.0) HDMI / VGA simultaneous video output Support Multi-brand network cameras ONVIF Version 2.4 conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro
Product Details
Specifications
Processor Industrial embedded micro-processor
IP Camera Input 32 channel
Operating System Embedded LINUX
Two-way Talk 1 channel Input, 1 channel Output, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA
Compression Smart H.265+/H.265/Smart H.264+/H.264
Video Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Video Recording Max. 200Mbps Incoming and 96Mbps outgoing bandwidth
Video Display Split 1/4/8/9/16/25/36
Motion Detection MD Zones: 396(22×18).
Video Loss Supports
Camera Blank Supports
Audio Compression PCM; G.711A; G.711U; G.726
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Alarm Output 4 Channel, NO/NC Programmable, Green Terminal Interface
Hard Disk 4 SATA III ports, up to 10TB Each
Decoding Capability 8 channels@1080p (30fps)
Smart Phone iPhone, iPad, Android Phone
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering,
Video Loss), Stop
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Multi-channel Playback 1/4/9/16
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous
camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network
Interface Ports 2 USB (1USB 3.0), 1 RS485, 1 RS232
Max User Account 128 users
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
IP Camera Input 32 channel
Operating System Embedded LINUX
Two-way Talk 1 channel Input, 1 channel Output, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA
Compression Smart H.265+/H.265/Smart H.264+/H.264
Video Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Video Recording Max. 200Mbps Incoming and 96Mbps outgoing bandwidth
Video Display Split 1/4/8/9/16/25/36
Motion Detection MD Zones: 396(22×18).
Video Loss Supports
Camera Blank Supports
Audio Compression PCM; G.711A; G.711U; G.726
Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
Alarm Output 4 Channel, NO/NC Programmable, Green Terminal Interface
Hard Disk 4 SATA III ports, up to 10TB Each
Decoding Capability 8 channels@1080p (30fps)
Smart Phone iPhone, iPad, Android Phone
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering,
Video Loss), Stop
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Multi-channel Playback 1/4/9/16
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous
camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network
Interface Ports 2 USB (1USB 3.0), 1 RS485, 1 RS232
Max User Account 128 users
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
General
- Product TypeNVR
- HDD Capacity10TB
- Channels Quantity32 Channels
- Megapixel (Approx.)8 MP
- Night VisionYes
- Mic SupportedYes
