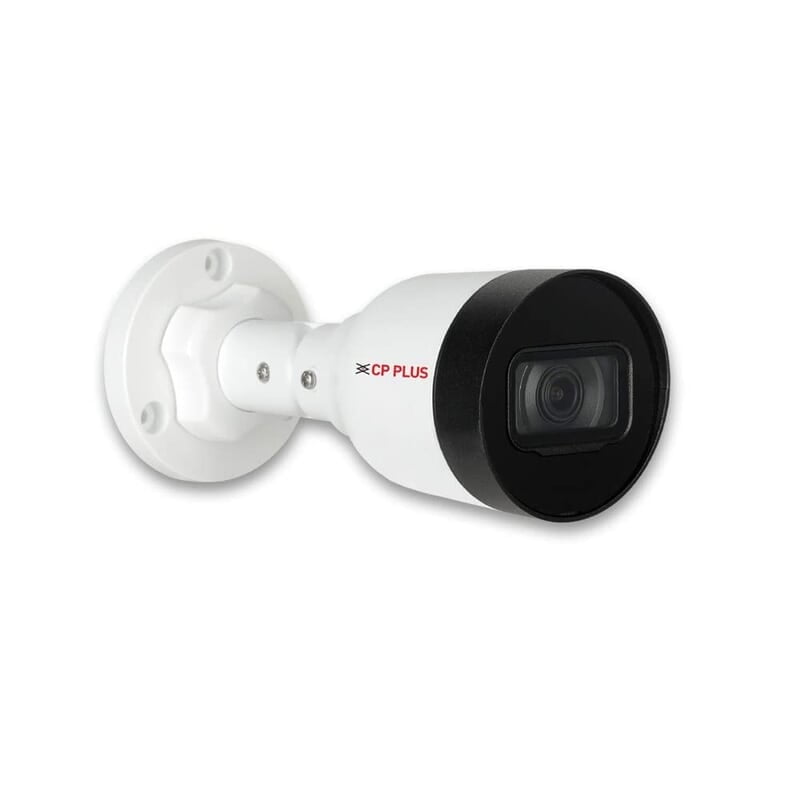

CP PLUS 2MP Color Guard+ IP Bullet Outdoor CCTV Camera
2MP Full-color Guard+ Network IR Bullet Camera
CP-UNC-TA21L2C-GP-V3 + USEWELL RJ45
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 centimeters)
Built in Mic, Built-in LEDs, Support IP67, PoE
Max. 2MP(1920 x1080)@25/30fps
Instastream and Smart H.264+ dual-stream encoding
DWDR, Day/Night (ICR), 3D-NR, ROI, AWB, AGC, BLC, HLC
3.6mm lens (2.8mm optional)
Support IP67, PoE
Built-in efficient LED illuminator, and the max. illumination distance is 20Mtr.
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
RAM & ROM 64MB & 16MB Lens Type Fixed-focal
Motion detection OFF/ON (4 areas,rectangular)
Resolution 1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480);VGA (640× 480); CIF (352 × 288/352 × 240)
Privacy Mask 4 areas
ICR Color/B/W
ROI Yes (4 areas)
Bit Rate H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6400 Kbps
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
User Account 6 Total bandwidth: 36 M)
Browser IE Chrome Firefox
Illumination Distance 20 Mtr.
Illuminator Number 1 (Warm Light)
Storage FTP
Operating Temperature -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Temperature -40° C ~ +60° C (-40° F ~ +140° F)
Basic power consumption: 1.4W (12V DC); 2.2W (PoE)
Max. power consumption (ICR + H.265+IR intensity): 4.2W (12V DC); 5.3W (PoE
Cyber Security Video encryption; configuration encryption; Digest; WSSE;
account lockout; security logs;
generation and importing of X.509 certification; HTTPS; trusted boot;
trusted upgrade Weatherproof Standard IP67
General
- TypesIP
- Placement SupportedIndoor/Outdoor
- Megapixel (Approx.)2 MP
- Mounting TypeWall
- Connectivity TechnologyWired
- Video Motion DetectionYes
- Wi-FiYes
- Power Over EthernetYes
- Ethernet LANYes
