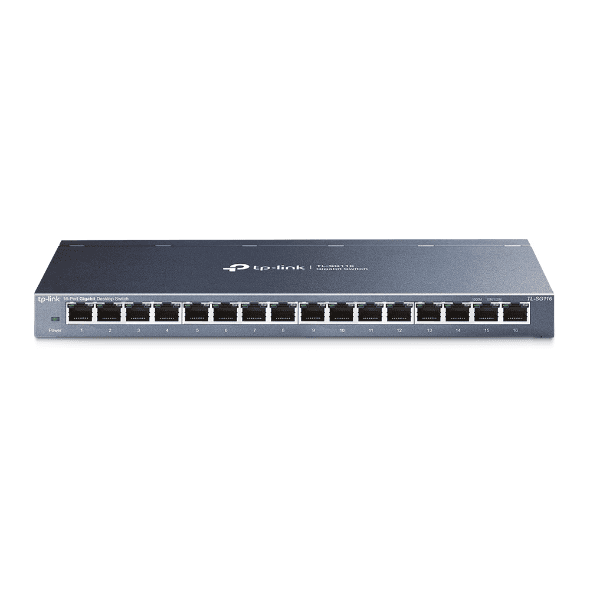

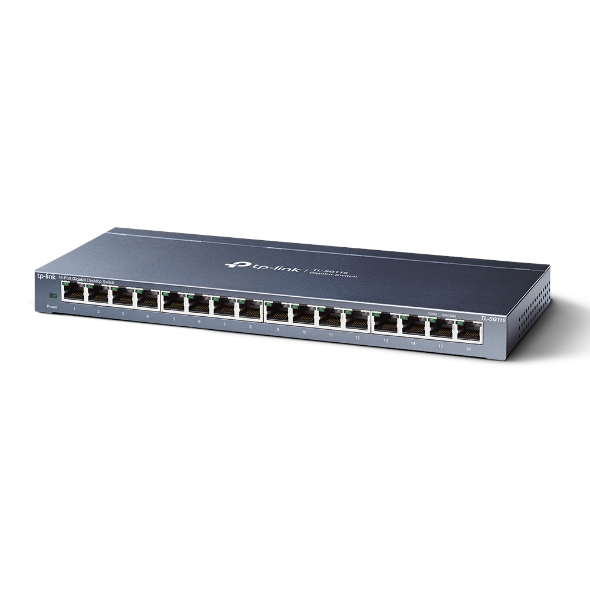

TP-Link 16-Port Gigabit Desktop Switch-TL-SG116
Feature | Details |
|---|---|
Ports | 16 10/100/1000Mbps Auto-Negotiation RJ45 ports |
Power Saving | Green Ethernet technology saves power consumption |
Data Transfer | IEEE 802.3x flow control for reliable data transfer |
Design | Steel housing, desktop or wall-mounting design |
QoS & IGMP | Supports 802.1p/DSCP QoS and IGMP Snooping |
Ease of Use | Plug and play, no configuration needed |
Category | Details |
|---|---|
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p |
Interface | 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 12VDC / 1.0A) |
LED Indicators | System Power, Link/Act indicators per port built into each RJ-45 port |
Dimensions (W x D x H) | 11.26 x 4.4 x 1.0 in. (286111.725.4 mm) |
Max. Power Consumption | 10W(220V/50Hz) |
Max Heat Dissipation | 34.12 BTU/h |
PERFORMANCE | |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
SOFTWARE FEATURES | |
Advanced Features | Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transmission Method | Store and Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Content | 16-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide, Rubber Feet |
General
- TypesUnManaged
- Switching Capacity32 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports16
- Rack MountingNo
