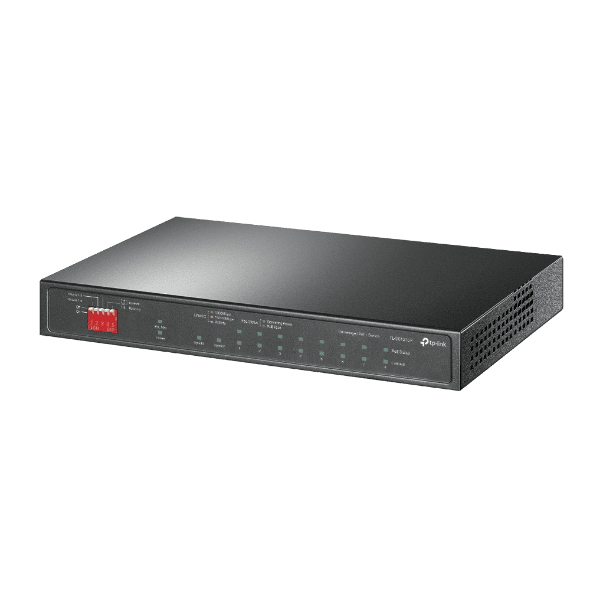

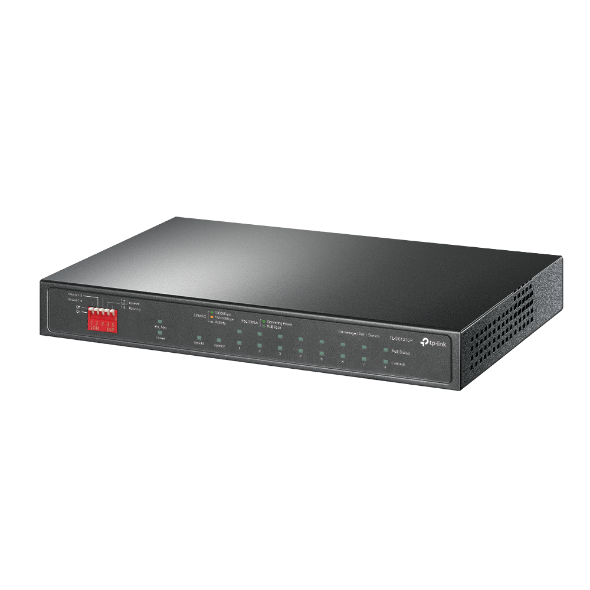

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+( TL-SG1210P)
Key Point | Specification |
|---|---|
PoE Ports | 8× 10/100/1000 Mbps RJ45 PoE+ Ports (IEEE 802.3af/at compliant) |
Total Ports | 10 total ports (8 PoE+ ports + 2 Gigabit RJ45 ports) |
PoE Power Budget | 65 W PoE power budget for all PoE ports |
Switching Capacity | 20 Gbps switching capacity |
Power Supply | External power supply (Output: 53.5V DC, 1.31A) |
Feature | Specification |
|---|---|
PoE Ports | 8 PoE+ 10/100/1000 Mbps RJ45 Ports (IEEE 802.3af/at compliant) |
Other Ports | 1 10/100/1000 Mbps RJ45 Port, 1 Gigabit SFP Slot |
PoE Power Budget | 63W total PoE power budget for all 8 PoE ports |
Switching Capacity | 20 Gbps |
Max Power Consumption | 7W (no PD connected), 77.24W (with 63W PD connected) |
Dimensions | 209 × 126 × 26 mm (W x D x H) |
Advanced Features | IEEE 802.3af/at Compliant, IGMP Snooping, QoS, Extend Mode (up to 250m PoE) |
PoE Recovery | PoE Auto Recovery (Ports 1–8) |
Fan Type | Fanless design |
Power Supply | External Power Adapter (Output: 53.5V DC / 1.31A) |
General
- TypesUnManaged
- Switching Capacity20 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of RJ45 Ports2
- No. Of Power Supplies Supported1
- Rack MountingNo
